Magnetic-drive chemical pumps, diaphragm pumps and dirty water pumps: all MARCH PUMPEN pump types at a glance.

Pump technology by type

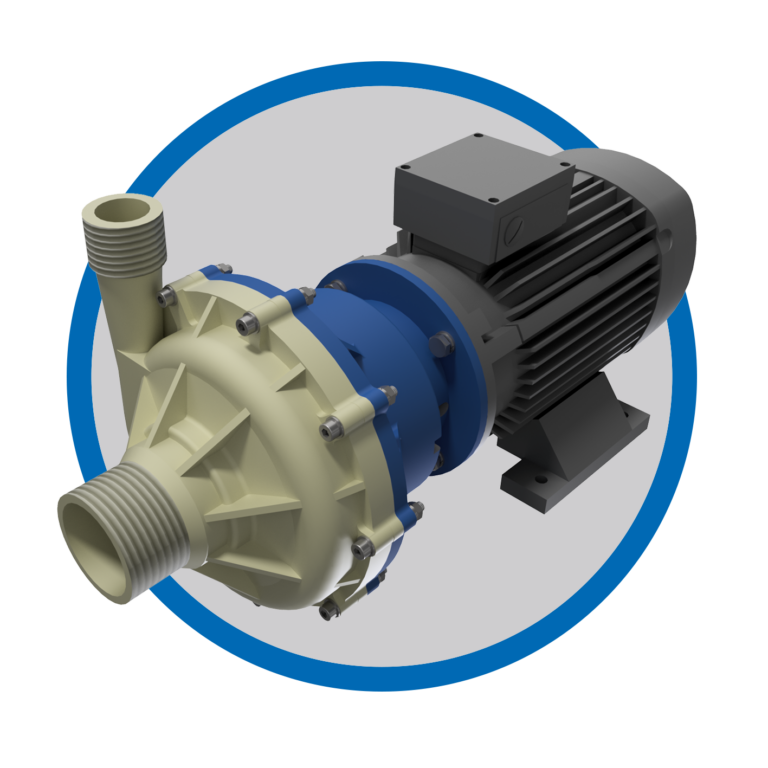

Magnetic-drive chemical centrifugal pumps Magnetic-drive chemical centrifugal pumps pump acids, alkalis and solvents leak-free and maintenance-free, entirely without a shaft seal. View 2 items
Magnetic-drive chemical standard pumps Magnetic-drive chemical standard pumps to ISO 2858 and DIN 24256: leak-free, made of stainless steel or non-metallic materials, also to ATEX. View 2 items

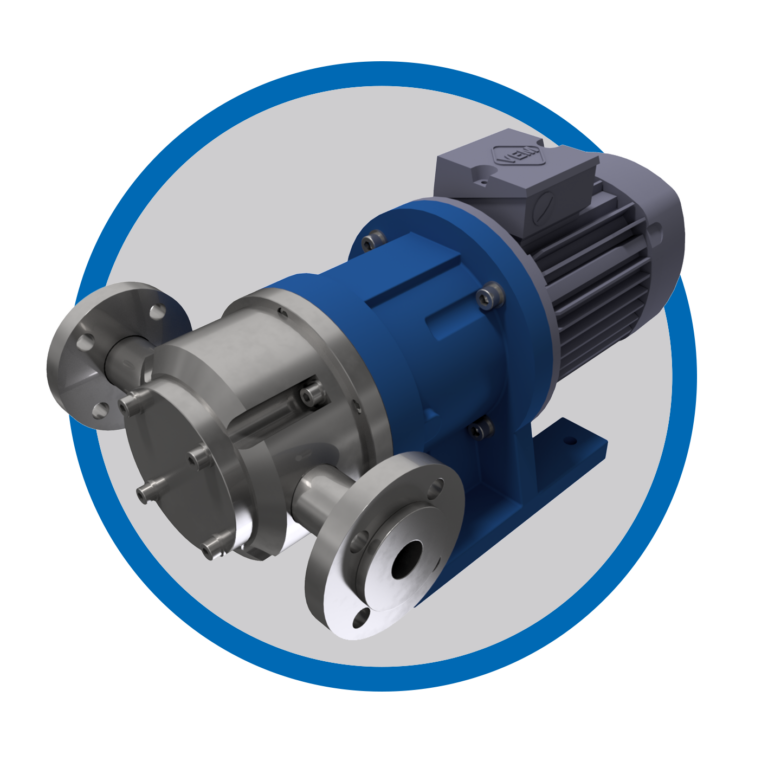

Magnetic-drive vane pumps, rotary vane pumps VANE-MAG® sliding vane pumps: magnetic-drive positive displacement pumps for liquids, as a non-metallic design MP or made of stainless steel (MPA). View 2 items

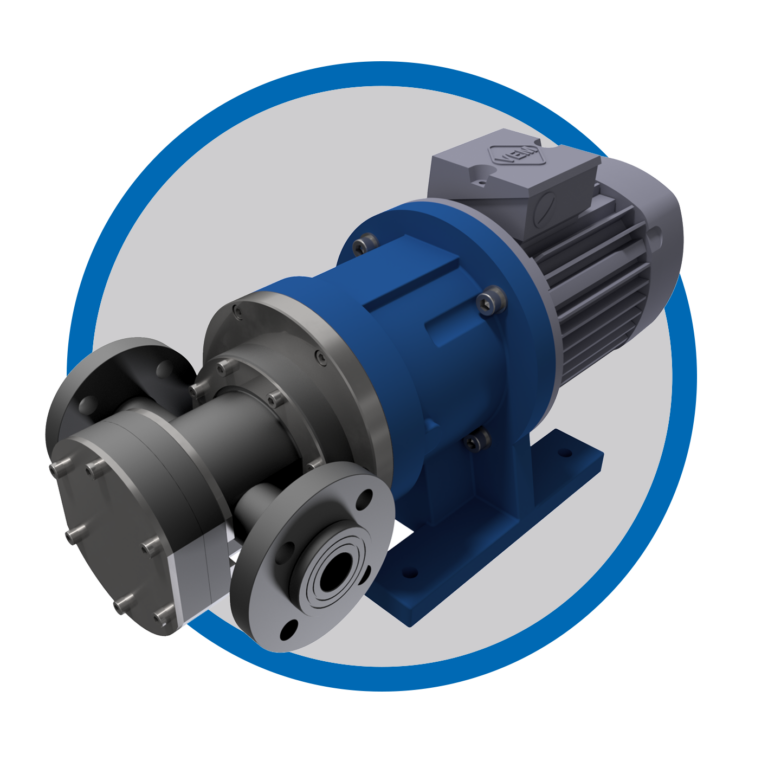

Magnetic-drive gear pumps MARCH magnetic-drive gear pumps: TEF-MAG® made entirely of non-metallic materials, MARCH MASTER GEAR made of stainless steel. View 2 items

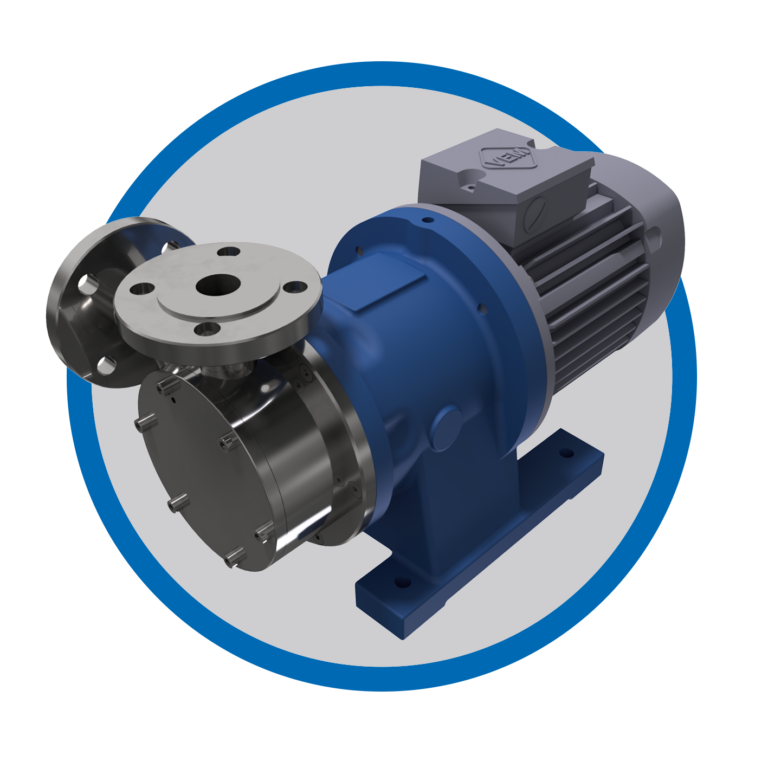

Magnetic-drive side-channel peripheral impeller pumps Magnetic-drive side-channel peripheral impeller pumps for high delivery pressure at small flow rates, made of stainless steel (MTA) or plastic (MT). View 2 items

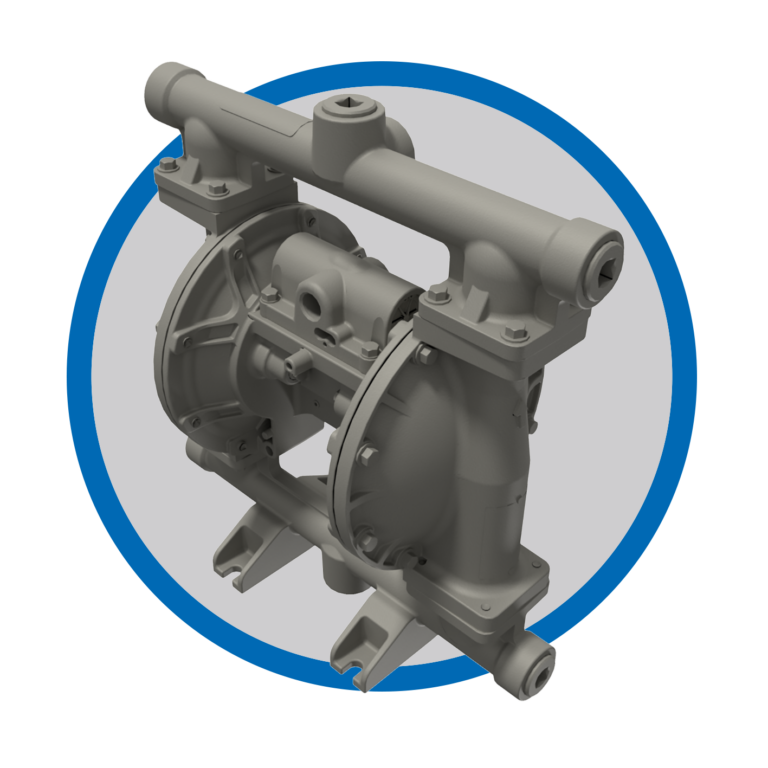

Air-operated double diaphragm pumps Air-operated double diaphragm pumps with dead-centre-free air control valve: dry self-priming, dry-run safe, suitable for solids. View 3 items

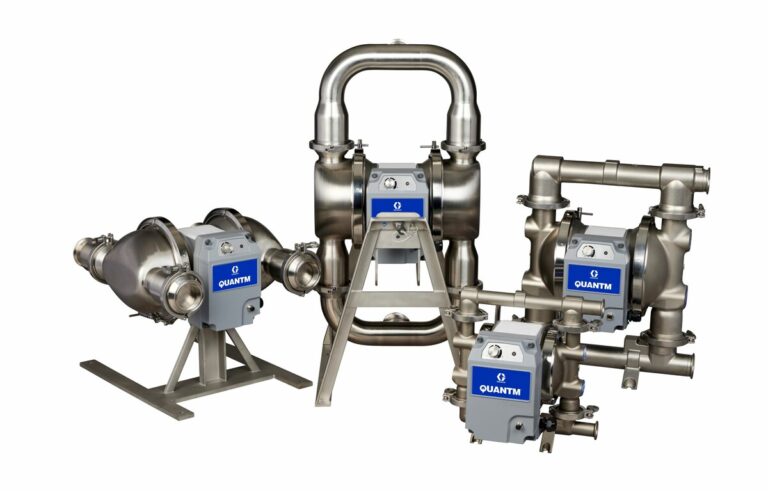

Electric double diaphragm pump The electrically operated QUANTM double diaphragm pump needs no compressed air, saves up to 80 % energy and has integrated control. View 1 item
Air-operated cylinder diaphragm pumps Air-operated CODIP cylinder diaphragm pumps made of PTFE for aggressive, abrasive and explosive chemicals up to 180 °C and 10 bar. View 1 item
Dirty water & wastewater pumps SELWOOD dirty water and wastewater pumps: dry self-priming, dry-run safe, for solids up to 100 mm and sludge fractions up to 95 vol-%. View 1 item
MARCH US Pump Assemblies MARCH US Pump Assemblies: American seal-less magnetic drive pumps in more than 20 series, with air motors, DC, beer, self-priming and submersible versions. View 20 items
Electrical power monitoring MARCH MASTER CONTROL: external electronic power monitor for electric-motor-driven pumps and machines. View 1 item

All series compared

Flow rate, head and materials of the MARCH pumps at a glance. The types of each series can be expanded; a click on the name opens the product page with all technical data.

Magnetic-drive chemical centrifugal pumps

Horizontal, normal-suction, single-stage, magnetic-drive chemical centrifugal pumps in close-coupled design made of stainless steel, or with wetted pump parts made of non-metallic materials, also to ATEX 2014/34/EU.

Series	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
M	0,05	40,5		35	2900	non-metallic
EUROLINE	0,5	56		32	2900	metallic & non-metallic

All types of the M series (13)

Series M	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
Typ M1	0,05	0,504	1,85	4	4000	non-metallic
Typ M2	0,2	1,5	0,65	6,8	3500	non-metallic
Typ M3X	0,2	1,98		3,7	2900	non-metallic
Typ M3	0,2	1,98		4,3	2900	non-metallic
Typ M4	0,3	3,06		4,8	2900	non-metallic
Typ M5	0,36	3,6	0,6	6,4	2900	non-metallic
Typ M5i	0,48	4,5		7,2	2900	non-metallic
Typ M5.5	0,68	6,12	1,3	8,8	2900	non-metallic
Typ M6	0,8	6,42	1,5	10,5	2900	non-metallic
Typ M7	1,2	10	2,25	12,2	2900	non-metallic
Typ M7.5	1,8	16,5	2	17,7	2900	non-metallic
Typ M8	3	24		19,5	2900	non-metallic
Typ M10	5,6	40,5	14,8	35	2900	non-metallic

All types of the EUROLINE series (11)

Series EUROLINE	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
EUROLINE M4.2H	0,5	3,5		7,2	2900	non-metallic
EUROLINE M6.2	0,6	6	0,3	8,2	2900	metallic
EUROLINE M6.2H		6,5		8,5	2900	non-metallic
EUROLINE M10.2	1,25	12		11	2900	metallic
EUROLINE M10.2H		13	0,4	14	2900	non-metallic
EUROLINE M15.2	2	23	1,9	20	2900	metallic
EUROLINE M15.2H		23	0,9	19,5	2900	non-metallic
EUROLINE M30.2	4	30,5	4	23,5	2900	metallic
EUROLINE M31.2H		36	2,1	24	2900	non-metallic
EUROLINE M40.2H		40	9	31	2900	non-metallic
EUROLINE M50.2H	4,8	56	10	32	2900	non-metallic

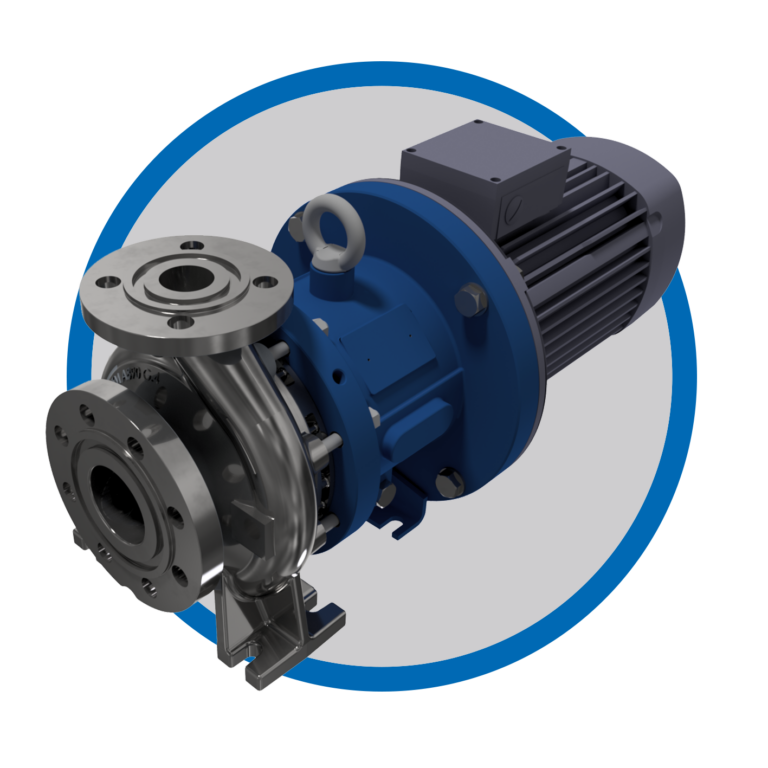

Magnetic-drive chemical standard pumps

Horizontal, normal-suction, single-stage, magnetic-drive chemical standard pumps in close-coupled or process design made of stainless steel, or with wetted pump parts made of non-metallic materials, also to ATEX 2014/34/EU.

Series	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MCA	3,6	340	7	95	2900	metallic
MCH	1,25	132	4	44	2900	non-metallic

All types of the MCA series (20)

Series MCA	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MCA 50-32-125	3,6	30	7	24	2900	metallic
MCA 50-32-160	4,4	33	10,5	38,5	2900	metallic
MCA 50-32-200	4,2	32,5	21	60	2900	metallic
MCA 50-32-250	4,7	32,5	44	93,5	2900	metallic
MCA 65-50-125	5,5	40	8,8	23,5	2900	metallic
MCA 65-50-160	6,4	43	17	37,5	2900	metallic
MCA 65-40-200	6,8	50	22,5	56,5	2900	metallic
MCA 65-40-250	7,5	50	39	93	2900	metallic
MCA 80-65-125	12,6	88	7,8	25	2900	metallic
MCA 80-65-160	12,6	90	16	40,5	2900	metallic
MCA 80-50-200	13	90	30,5	60	2900	metallic
MCA 80-50-250	14,2	95	34	90	2900	metallic
MCA 100-65-125	23,8	150	11	23,8	2900	metallic
MCA 100-65-160	20,8	140	13	39,5	2900	metallic
MCA 100-65-200	22	150	26	59	2900	metallic
MCA 100-65-250	23,2	180	33	95	2900	metallic
MCA 125-80-160	31,8	224	13	39	2900	metallic
MCA 125-80-200	35,2	250	24,5	58	2900	metallic
MCA 125-80-250	36,8	250	47,5	92	2900	metallic
MCA 125-100-200	47	340	22,5	57	2900	metallic

All types of the MCH series (6)

Series MCH	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MCH 32-25	1,25	11	4	15	2900	non-metallic
MCH 40-32	1,75	17,5	5	22	2900	non-metallic
MCH 50-40	3,3	30,5	7,5	26	2900	non-metallic
MCH 65-50	5	46	8	35	2900	non-metallic
MCH 80-65	8	92	9	36,5	2900	non-metallic
MCH 100-80	16	132	7	44	2900	non-metallic

Magnetic-drive sliding vane pumps

Horizontal, self-priming, single-stage, magnetic-drive rotary positive displacement pump (sliding vane pump / rotary vane pump / vane pump) in close-coupled design made of stainless steel, or with wetted pump parts made of non-metallic materials, also to ATEX 2014/34/EU.

Series	Q_min [l/h]	Q_nom [l/h]	ΔP_min [bar]	ΔP_max [bar]	Speed [rpm]	Materials
VANE-MAG® MP	5	1000		10	1450	non-metallic
VANE-MAG® MPA	5	2400		18	1450	metallic

All types of the VANE-MAG® MP series (8)

Series VANE-MAG® MP	Q_min [l/h]	Q_nom [l/h]	ΔP_max [bar]	Speed [rpm]	Materials
VANE-MAG® MP 114	5	100	5	1450	non-metallic
VANE-MAG® MP 214		200	5	1450	non-metallic
VANE-MAG® MP 314		300	5	1450	non-metallic
VANE-MAG® MP 414		400	5	1450	non-metallic
VANE-MAG® MP 514		500	5	1450	non-metallic
VANE-MAG® MP 614		600	10	1450	non-metallic
VANE-MAG® MP 814		800	10	1450	non-metallic
VANE-MAG® MP 1014		1000	10	1450	non-metallic

All types of the VANE-MAG® MPA series (12)

Series VANE-MAG® MPA	Q_min [l/h]	Q_nom [l/h]	ΔP_max [bar]	Speed [rpm]	Materials
VANE-MAG® MPA 114 I°	5	100	13	1450	metallic
VANE-MAG® MPA 214 I°		200	13	1450	metallic
VANE-MAG® MPA 314 I°		300	13	1450	metallic
VANE-MAG® MPA 414 I°		400	13	1450	metallic
VANE-MAG® MPA 514 I°		500	13	1450	metallic
VANE-MAG® MPA 614 II°		600	13	1450	metallic
VANE-MAG® MPA 814 II°		800	13	1450	metallic
VANE-MAG® MPA 1014 II°		1000	13	1450	metallic
VANE-MAG® MPA 1014 III°		1000	13	1450	metallic
VANE-MAG® MPA 1514 III°		1500	13	1450	metallic
VANE-MAG® MPA 2014 III°		2000	13	1450	metallic
VANE-MAG® MPA 2414 III°		2400	18	1450	metallic

Magnetic-drive gear pumps

Horizontal, self-priming, single-stage, magnetic-drive rotary positive displacement pump in close-coupled design made of stainless steel, or with wetted pump parts made of non-metallic materials, also to ATEX 2014/34/EU.

Series	Q_min [l/h]	Q_nom [l/h]	ΔP_min [bar]	ΔP_max [bar]	Speed [rpm]	Materials
TEF-MAG®		3750		10	1450	non-metallic
MARCH MASTER GEAR		300		8		metallic

All types of the TEF-MAG® series (4)

Series TEF-MAG®	Q_nom [l/h]	ΔP_max [bar]	Speed [rpm]	Materials
TEF-MAG® 200	260	10	1450	non-metallic
TEF-MAG® 800	850	10	1450	non-metallic
TEF-MAG® 1500	1375	10	1450	non-metallic
TEF-MAG® 3500	3750	10	1450	non-metallic

All types of the MARCH MASTER GEAR series (1)

Series MARCH MASTER GEAR	Q_min [l/h]	Q_max [l/h]	ΔP_min [mWs]	ΔP_max [mWs]	Speed [rpm]	Materials
MMG 300		300		8		metallic

Magnetic-drive side-channel peripheral impeller pumps

Horizontal, self-priming, gas-handling, single-stage, magnetic-drive side-channel peripheral impeller pump in close-coupled design made of stainless steel, or with wetted pump parts made of non-metallic materials, also to ATEX 2014/34/EU.

Series	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MT	0,09	13	0,3	54	2900	non-metallic
MTA	0,16	17		174	2900	metallic

All types of the MT series (11)

Series MT	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MT 2002	0,09	1,65	0,33	10,4	2900	non-metallic
MT 2003	0,37	2,75	0,3	23,4	2900	non-metallic
MT 3002	0,37	2,75	0,6	25	2900	non-metallic
MT 3003	0,33	2,95	0,8	25,8	2900	non-metallic
MT 5002	0,55	4,15	0,9	32	2900	non-metallic
MT 5003	0,55	4,75	1,25	33,5	2900	non-metallic
MT 7002	0,9	6,8	1	36	2900	non-metallic
MT 7003	0,9	7	1	39	2900	non-metallic
MT 9000	1,2	8,5	8	42	2900	non-metallic
MT 12000	1,05	9,6	15	50	2900	non-metallic
MT 16000	1,25	13	21	54	2900	non-metallic

All types of the MTA series (7)

Series MTA	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MTA 25	0,16	1,8	0	25	2900	metallic
MTA 37	0,25	2,8	0	35	2900	metallic
MTA 49	0,4	4,2	0	62	2900	metallic
MTA 55	0,4	4,7	5	77	2900	metallic
MTA 78	1,3	6,5	5	62	2900	metallic
MTA 1011	1,3	10	6,7	97	2900	metallic
MTA 2020	2,5	17	30	174	2900	metallic

Air-operated double diaphragm pumps

Dry self-priming, dry-run tolerant, solids-handling^*1, air-operated double diaphragm pump with maintenance-free, non-icing and virtually dead-centre-free air control valve.
Design also according to ATEX 2014/34/EU.

^*1 Please enquire about the different operating limits for the different series

^*2 Connections discharge side = suction side

Series	DN_S/D^*2 [inch BSP]	Q_max [m³/h]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
MARCH MASTER AIR	1/2" to 3"	63,6	8,4	0.672 to 9.1	metallic & non-metallic
GRACO	1/4" to 3"	68,1	8,6	0.252 to 9.1	metallic & non-metallic
VERSA-MATIC	1/2" to 3"	68,4	16,5	5,1	metallic & non-metallic

All types of the MARCH MASTER AIR series (15)

Series MARCH MASTER AIR	DN_S/D^*2 [inch BSP]	Q_max [m³/h]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
MMA 515	1/2" or 3/4"	3,42	8,4	0,672	PP / PVDF
MMA 716A	1/2" or 3/4"	3,42	8,4	0,672	Aluminium
MMA 716S	1/2" or 3/4"	3,42	8,4	0,672	AISI304 / AISI316
MMA 1040P	1"	9,42	8,4	1,7	PP / PVDF
MMA 1040A	1"	9,42	8,4	1,7	Aluminium
MMA 1040S	1"	9,42	8,4	1,7	AISI304 / AISI316
MMA 1590P	1 1/2"	21,48	8,4	3,5	PP / PVDF
MMA 1590A	1 1/2"	21,48	8,4	3,5	Aluminium
MMA 1590S	1 1/2"	21,48	8,4	3,5	AISI304 / AISI316
MMA 2150P	2"	35,22	8,4	4,9	PP / PVDF
MMA 2150A	2"	35,22	8,4	4,9	Aluminium
MMA 2150S	2"	35,22	8,4	4,9	AISI304 / AISI316
MMA 3300P	3"	63,6	8,4	9,1	PP / PVDF
MMA 3300A	3"	63,6	8,4	9,1	Aluminium
MMA 3300S	3"	63,6	8,4	9,1	AISI304 / AISI316

All types of the GRACO series (15)

Series GRACO	DN_S/D^*2 [inch BSP]	Q_max [m³/h]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
Husky 205 Plastic	1/4"	1,14	7	0,252	non-metallic
Husky 307 Plastic	3/8"	1,56	7	0,17	non-metallic
Husky 515 Plastic	1/2"	3,42	7	0,672	non-metallic
Husky 716 Metal	3/4"	3,66	7	0,672	metallic
Husky 1050 Plastic	1"	11,34	8,6	1,7	non-metallic
Husky 1050 Metal	1"	11,34	8,6	1,7	metallic
Husky 1050HP	1"	11,34	8,6	2,7	metallic
Husky 1590 Plastic	1 1/2"	22,74	8,3	3,5	non-metallic
Husky 1590 Metal	1 1/2"	22,74	8,3	3,5	metallic
Husky 15120 Plastic	1 1/2"	27,24	8,3	2,4	non-metallic
Husky 2150 Plastic	2"	34,08	8,3	4,9	non-metallic
Husky 2150 Metal	2"	34,08	8,3	4,9	metallic
Husky 2200 Plastic	2"	45,42	8,6	4,4	non-metallic
Husky 3300 Plastic	3"	63	7	7,8	non-metallic
Husky 3300 Metal	3"	68,1	8,6	9,5	metallic

All types of the VERSA-MATIC series (8)

Series VERSA-MATIC	DN_S/D^*2 [inch BSP]	Q_max [m³/h]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
Bolted metal design	1/2" to 3"	61,98	8,6	5,1	metallic
Clamped metal design	1 1/4" to 3"	53,16	7,6	3,4	metallic
Bolted non-metallic design	1/4" to 3"	54,06	7	3,97	non-metallic
High efficiency	2" to 3"	55,62	8,6	2,83	metallic & non-metallic
Special applications FDA	1/2" to 3"	53,16	8,6	5,1	metallic
Special applications 3A Sanitary	1 1/2" or 2"	40,8	7	4	metallic
Special applications high pressure 2:1	1" to 2"	20,46	16,5	3	metallic
Special applications centrifugal pumps	1 1/2" or 3"	68,4			metallic

Electrically operated double diaphragm pumps

Dry self-priming, dry-run tolerant, solids-handling^*1, electrically operated double diaphragm pump. Compared with the air-operated double diaphragm pump, this saves 80% energy.
Design also according to ATEX or FDA.

^*1 Please enquire about the different operating limits for the different series

^*2 Connections discharge side = suction side

Series	DN_S/D^*2 [inch BSP]	Q_max [l/min]	ΔP_min [bar]	ΔP_max [bar]	Energy consumption max [watt]	Materials
GRACO QUANTM	1" to 2"	450		7	∼ 1800	metallic & non-metallic

All types of the GRACO QUANTM series (3)

Series GRACO QUANTM	DN_S/D^*2 [inch BSP]	Q_max [l/min]	ΔP_max [bar]	Energy consumption max [watt]	Materials
QUANTM i30	1"	115	7	∼ 900	metallic or non-metallic
QUANTM i80	1,5"	300	7	∼ 1400	metallic or non-metallic
QUANTM i120	2"	450	4,2	∼ 1800	metallic or non-metallic

Air-operated cylinder diaphragm pumps

Infinitely variable, air-operated, dry self-priming, dry-run tolerant and solids-handling^*1 cylinder diaphragm pump with wetted parts made entirely of PTFE.

^*1 Please enquire about the different operating limits for the different series

Series	DN [inch BSP]	Q_max [m³/h]	ΔP_min [bar]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
CODIP	1" to 3"	21		10	0.21 to 3.2	non-metallic

All types of the CODIP series (5)

Series CODIP	DN [inch BSP]	Q_max [m³/h]	ΔP_max [bar]	Air consumption max [m³/min]	Materials
RP 20	1"	1,32	10	0,21	non-metallic
RP 60	2"	5,88	10	0,65	non-metallic
RP 60 DX	2"	10,68	10	1,28	non-metallic
RP 150	3"	10,8	10	1,62	non-metallic
RP 150 DX	3"	21	10	3,2	non-metallic

Dirty water and wastewater pumps

Self-priming, dry-run tolerant, solids-handling centrifugal pumps or induction diaphragm positive displacement pumps for dirty water and wastewater applications.

Series	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
SELWOOD		1290		158		metallic

All types of the SELWOOD series (6)

SELWOOD	Q_max [m³/h]	H_max [mWs]	Materials
"S" pumps	1290	70	metallic
"D" pumps	600	40,5	metallic
"H" pumps	950	158	metallic
"HS" pumps	575	69	metallic
"C" pumps	285	24,5	metallic
"PD" pumps	77	30,5	metallic

MARCH US Pump Assemblies

Horizontal, normal-suction, single-stage, magnetic-drive chemical centrifugal pumps in close-coupled design made of stainless steel or plastic for OEM applications

Series	Q_min [m³/h]	Q_max [m³/h]	H_min [mWs]	H_max [mWs]	Speed [rpm]	Materials
MARCH US Pump Assemblies	0,05	40,5		35		metallic & non-metallic

Electrical power monitoring

MARCH MASTER CONTROL

The life insurance for your pumps!

Pump technology by type

All series compared

Which pump suits your task?
