MARCH magnetic-drive chemical centrifugal pumps work entirely without a mechanical shaft seal. Power is transmitted without contact and with a positive fit to the hydraulic part by strong permanent magnets. MARCH magnetic-drive chemical centrifugal pumps meet the highest demands for quality, economy and reliability when pumping aggressive, toxic and environmentally hazardous liquids.

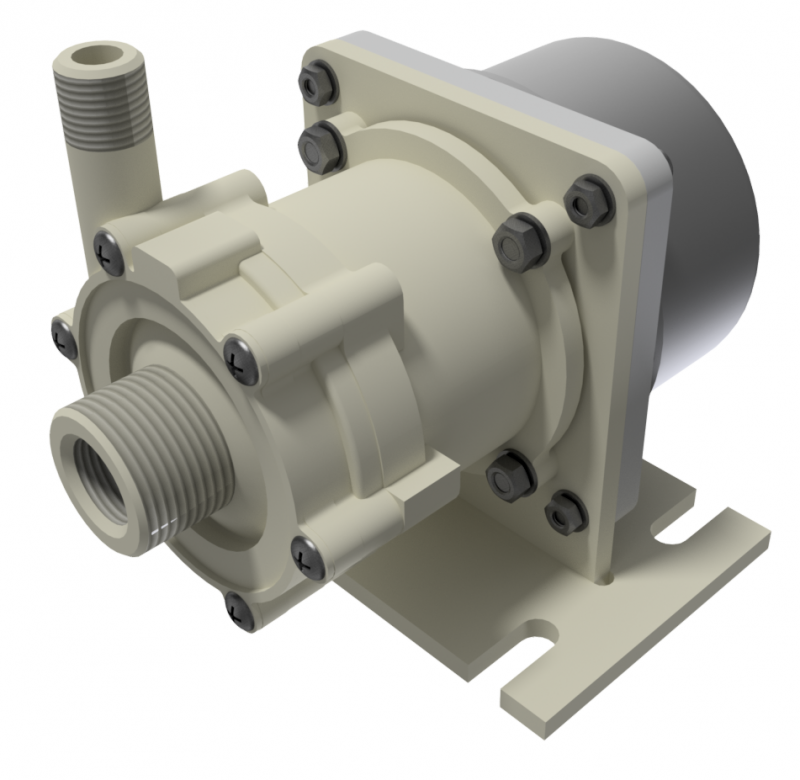

Centrifugal pump M2
Normal-suction, magnetic-drive, leak-free chemical centrifugal pump with wetted pump parts made of non-metallic materials in close-coupled design, to CE directives.
- Flow rate
- max. 25,0 l/min
- Head
- max. 6,8 mWs
- Materials
- PP, POM
- Temperature
- max. 90 °C
- Drive
- 24 V
Details
Technical data of the standard design
Performance data
| Flow rate | max. 25 l/min |
|---|---|
| Head | max. 6,8 mWs |
Temperatures
| PP | max. 70°C |
|---|---|
| POM | max. 90°C |
Available materials
| Casing | PP, POM (Delrin) |
|---|---|
| Impellers | PP, POM (Delrin) |
| Pump shaft | Ceramic |
| Thrust plate | Ceramic |
| O-ring | EPDM, Viton, Buna, Teflon |
System pressure
| PP | max. 2,5 bar |
|---|---|
| POM | max. 3,5 bar |
Suction-side connections
| Pipe thread 3/8“ NPT (f) | |
| Pipe thread 3/4“ NPT (m) | |
| Pipe thread G3/8“ female | |
| Hose connection 20 mm |
Discharge-side connections
| Pipe thread 1/4“ NPT (m) | |
| Hose connection 20 mm |
Motor
| Electronically commutated DC motor, make EBM-PAPST | |
| 24 V | |
| 26 W |
