MARCH magnetic-drive chemical centrifugal pumps work entirely without a mechanical shaft seal. Power is transmitted without contact and with a positive fit to the hydraulic part by strong permanent magnets. MARCH magnetic-drive chemical centrifugal pumps meet the highest demands for quality, economy and reliability when pumping aggressive, toxic and environmentally hazardous liquids.

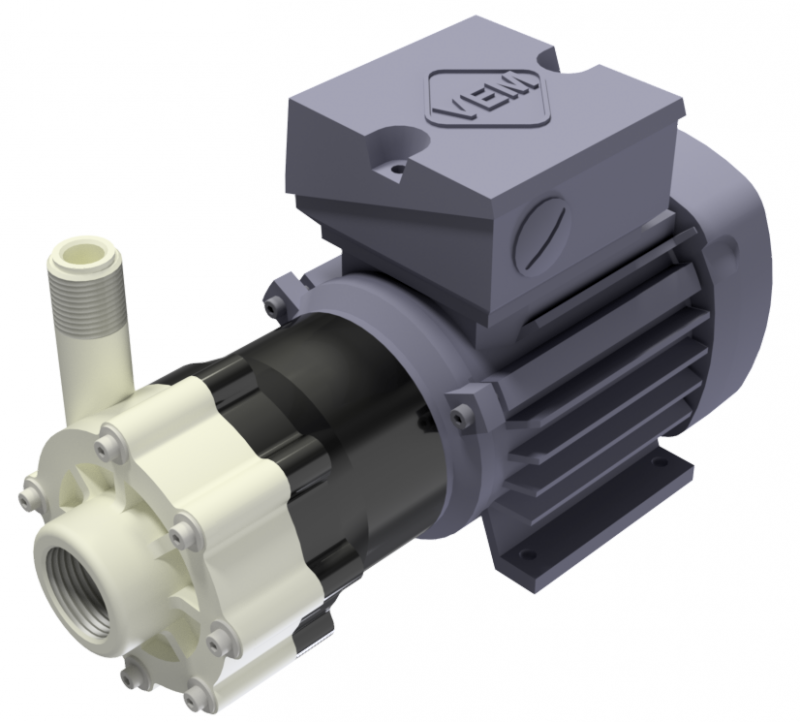

Centrifugal pump M5
Normal-suction, magnetic-drive, leak-free chemical centrifugal pump with wetted pump parts made of non-metallic materials in close-coupled design, to CE directives.
- Flow rate
- max. 60,0 l/min
- Head
- max. 6,4 mWs
- Materials
- PP, PPS, PVDF
- Temperature
- max. 90 °C
- Drive
- 230 / 400 V
Details
Technical data of the standard design
Performance data
| Flow rate | max. 60 l/min |
|---|---|
| Head | max. 6,4 mWs |
Temperatures
| PP | max. 70°C |
|---|---|
| PPS | max. 90°C |
| PVDF | max. 90°C |
Available materials
| Casing | PP, PPS (Ryton), PVDF |
|---|---|
| Impellers | PP, PPS (Ryton), PVDF |
| Pump shaft | Ceramic |
| Thrust washer | Ceramic |
| O-ring | EPDM, Viton, Buna, Teflon |
System pressure
| PP | max. 2,5 bar |
|---|---|
| PPS | max. 3,5 bar |
| PVDF | max. 3,5 bar |
Suction-side connections
| Pipe thread 1“ NPT (f) | |
| Pipe thread G 1“ female | |
| Screw-in part G 1 1/2" male thread | |
| Flange DN 25 |
Discharge-side connections
| Pipe thread 1/2“ NPT (m) | |
| Screw-in part G 1" male thread | |
| Flange DN 15 |
Motor
| IEC AC or three-phase motor | |
| 1x230 V or 3x230/400 V, 50 Hz | |
| 120 W, 2900 rpm |
