Electrically operated double diaphragm pumps

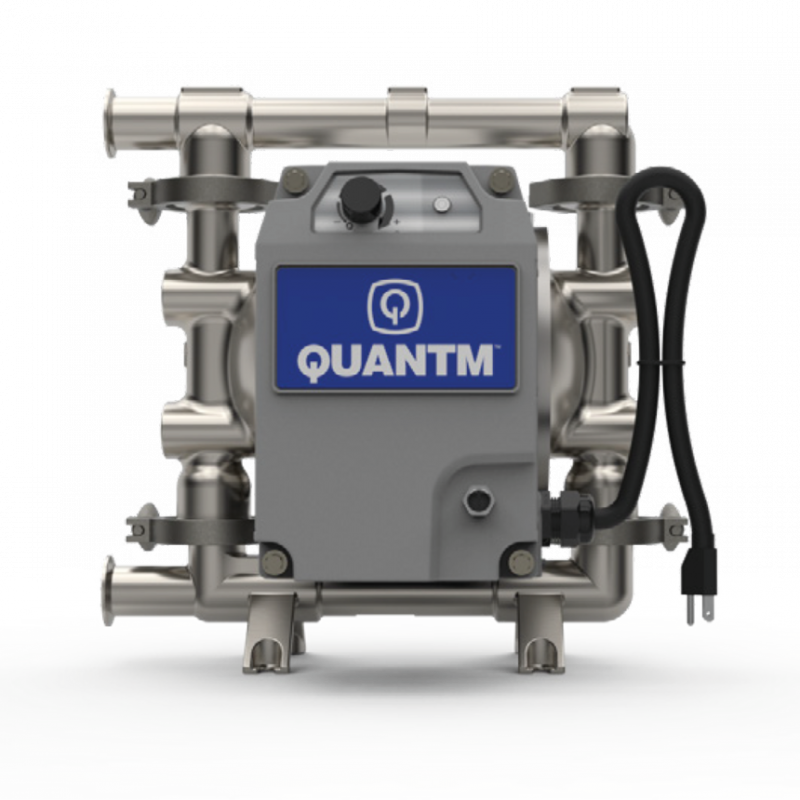

The QUANTM series is an electrically operated double diaphragm pump. By dispensing with compressed air, it has up to 80% lower energy consumption. The pump control is integrated and all other advantages of an air-operated double diaphragm pump are retained. The pump is perfectly suited to almost all liquid applications and can replace existing pump technologies.
The casing parts, diaphragms, valve seats and balls are made and fitted from high-quality materials. Double diaphragm pumps are dry self-priming, dry-run safe and can pump fluids loaded with solids without problems. Even viscous or volatile fluids are no problem for the double diaphragm pumps. Thanks to these properties, the QUANTM series pumps are among the most reliable double diaphragm pumps on the market. The electric motor means that no compressed air is needed any more, which reduces energy consumption by up to 80%. Models to ATEX or FDA are available on request.
Technical data
| Series QUANTM | DN [inch BSP] | Qmax [l/min] | ΔPmax [bar] | Material |
|---|---|---|---|---|
| QUANTM i30 | 1″ | 115 | 7 | metallic / non-metallic |
| QUANTM i80 | 1,5″ | 300 | 7 | metallic / non-metallic |
| QUANTM i120 | 2″ | 450 | 4,2 | metallic / non-metallic |
Applications
- Drum or bulk unloading
- Transfer, circulation and feed systems
- On-demand bulk metering
- Chemical feed
- Dewatering, sump emptying
- Acids, alkalis, solvents, liquefied gases, polymers
- Abrasive and corrosive fluids
- Ceramic glaze/slip/slurries
- Adhesives
- Paints, varnishes
- Water, wastewater
- Waste oil
- Sludges, sewage sludge
