| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 120 GPM | 454 LPM |
| Max Head | 90 FT | 27.4 M |
| Power | 5 HP | 3.7 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 105 GPM | 400 LPM |
| Max Head | 63 FT | 19.3 M |
| Power | 5 HP | 3.7 KW |
Electrical/Air: 1Ph 208/230V 60Hz or 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2″MPT
Outlet: 1-1/2″MPT
- Wet End: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
- Additional Motor Options: Available in 5HP Explosion Proof, 575V, or Washdown
- Max Internal Pressure: 200 PSI / 13.7 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March TE-8S-MD Curve 60Hz (opens in new tab)
- March TE-8S-MD Curve 50Hz (opens in new tab)
- March TE-8S-MD Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0157-0030-0100 | TE-8S-MD 3 Phase 5HP with Metal Motor Bracket | Standard |
| 0157-0030-0200 | TE-8S-MD 3 Phase 5HP Explosion Proof with Metal Motor Bracket | Standard |
| 0157-0102-0300 | TE-8S-MD 1 Phase 5HP with Metal Motor Bracket | Standard |
| 0157-0104-0300 | TE-8S-MD 3 Phase 575V 5HP with Metal Motor Bracket | Standard |
| 0157-0128-0100 | TE-8S-MD 3 Phase 5HP with Plastic Motor Bracket | Standard |
| 0157-0131-0100 | TE-8S-MD 3 Phase 5HP Explosion Proof with Plastic Motor Bracket | Standard |
| The below are modified TE-8S-MD’s | ||
| 0157-0030-0112 | TE-8S-MD 3 Phase 5HP with Metal Motor Bracket | Teflon O-Ring |
| 0157-0030-0212 | TE-8S-MD 3 Phase 5HP Explosion Proof with Metal Motor Bracket | Teflon O-Ring |
| 0157-0030-0132 | TE-8S-MD 3 Phase 5HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0157-0030-0232 | TE-8S-MD 3 Phase 5HP Explosion Proof with Metal Motor Bracket | Mica Teflon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0157-0030-1000 | 1 | TE-8S-MD, 3 Phase, Complete Standard Pump | |
| 1 | 0157-0036-1000 | 8 | 1/4″-20 x 1-1/4″ Long Screw (Stainless) |
| 2 | 0157-0023-1000 | 8 | 1/4″ ID x 5/8″ OD Washer (Stainless) |
| 3 | 0157-0114-1000 | 1 | Pump Housing & Item 9 (Rear Housing) must be purchased together for matching set. (316 Stainless) |
| 4 | 0157-0011-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (Viton) |
| 5 | 0157-0001-1000 | 1 | Front Thrust Washer (Ceramic) |
| 6 | 0157-0002-1000 | 1 | Shaft (Ceramic) |
| 7 | 0157-0029-0500 | 1 | Impeller with Carbon Bushing (316 Stainless) |
| 8 | 0157-0009-1000 | 1 | Rear Thrust Washer (Ceramic) |
| 9 | 0157-0115-1000 | 1 | Rear Housing & Item 3 (Pump Housing) must be purchased together for matching set. (316 Stainless) |
| 10 | 0157-0005-0100 | 1 | Drive Magnet |
| 11 | 0157-0008-0010 | 1 | Motor Bracket (Metal) |
| 12 | 0160-0031-1000 | 4 | 1/2″-13 x 1″ Long Screw (Stainless) |
| 13 | 0160-0032-1000 | 4 | 1/2″ ID x 1-1/4″ OD Washer (Stainless) |
| 14 | 0157-0065-1000 | 1 | Motor, TEFC, 3 Phase, 230/460 V, 50/60 Hz, 5 HP |
| WEK | 0157-0113-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9) |
| PLM | 0157-0149-0100 | 1 | Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8 ,9, 10, 11, 12, 13) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0157-0032-1000 | 1 | 1/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton) |
| 4 | 0157-0058-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (EPDM) |
| 5 | 0157-0043-1000 | 1 | Front Thrust Washer (Hastelloy C) |
| 6 | 0157-0045-1000 | 1 | Shaft (Hastelloy C) |
| 6 | 0157-0099-1000 | 1 | Shaft, 3 Flats (Ceramic) |
| 6 | 0157-0150-1000 | 1 | Shaft (316 Stainless) |
| 7 | 0157-0029-0200 | 1 | Impeller with Ryton Bushing (316 Stainless) |
| 7 | 0157-0029-0700 | 1 | Impeller with Mica Teflon Bushing (316 Stainless) |
| 8 | 0157-0047-1000 | 1 | Rear Thrust Washer (Hastelloy C) |
| 0157-0042-1000 | 1 | Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs) | |
| 1 | Motor, Washdown, 3 Phase (Contact March for Additional Specs) | ||
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14 AMPS, 2850 RPM (Usable at 190/220V)
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-8S-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.
Great for Chemicals Including
The TE-8S-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, and Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-8S-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8S-MD. Chemical Resistance Chart (opens in new tab)
Summary Paragraph

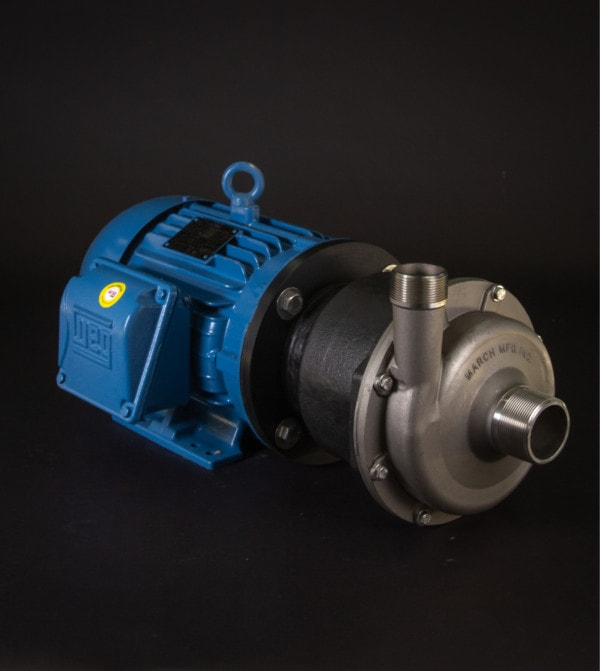

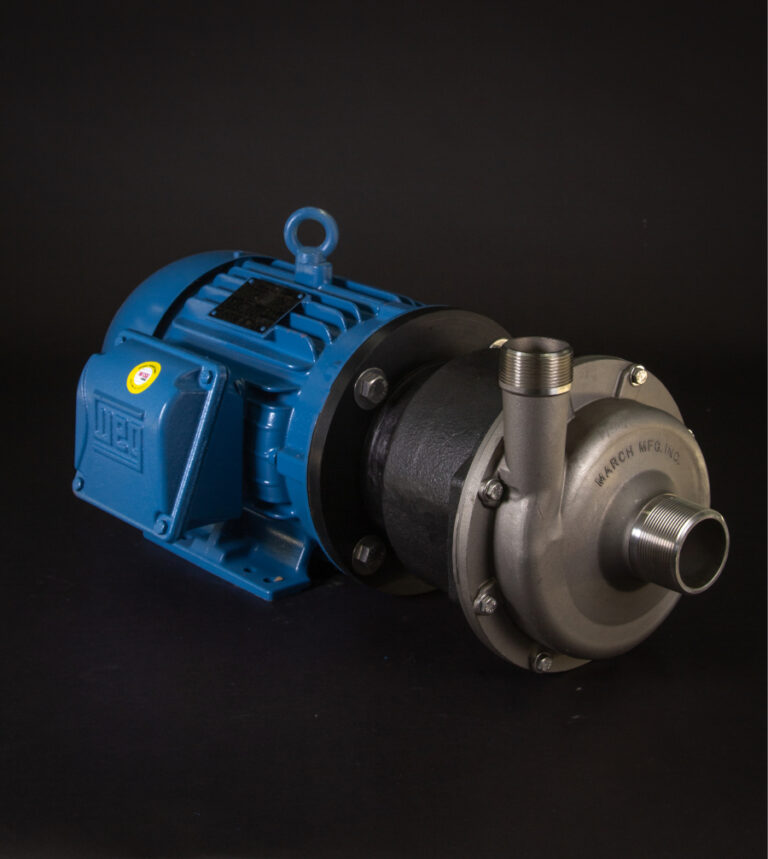

March Pump’s industrial TE-8S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first motor is a 1 Phase 208/230V 5 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 5 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-8S-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8S-MD is suitable for your application, please contact March Pump.
