| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 120 GPM | 454 LPM |
| Max Head | 95 FT | 29 M |
| Power | 3 HP | 2.2 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 105 GPM | 400 LPM |
| Max Head | 65 FT | 20 M |
| Power | 3 HP | 2.2 KW |
Electrical/Air: 1Ph 208/230V 60Hz or 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2″MPT
Outlet: 1-1/2″MPT
- Wet End: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Additional Motor Options: Available in 3HP, 5HP, 5HP Explosion Proof, 3HP 575V, 5HP 575V, or Washdown
- Max Internal Pressure: 75 PSI / 5.1 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March TE-8C-MD, TE-8K-MD Curve 60Hz (opens in new tab)
- March TE-8C-MD, TE-8K-MD Curve 50Hz (opens in new tab)
- March TE-8C-MD and TE-8K-MD Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0157-0008-0200 | TE-8K-MD 3 Phase 3HP with Metal Motor Bracket | Standard |
| 0157-0008-0800 | TE-8K-MD 3 Phase 5HP with Metal Motor Bracket | Standard |
| 0157-0008-0400 | TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Standard |
| 0157-0102-0100 | TE-8K-MD 1 Phase 3 HP with Metal Motor Bracket | Standard |
| 0157-0137-0200 | TE-8K-MD 3 Phase 575V 3HP with Metal Motor Bracket | Standard |
| 0157-0126-0100 | TE-8K-MD 3 Phase 3HP with Plastic Motor Bracket | Standard |
| 0157-0127-0100 | TE-8K-MD 3 Phase 5HP with Plastic Motor Bracket | Standard |
| 0157-0130-0100 | TE-8K-MD 3 Phase 5HP Explosion Proof with Plastic Motor Bracket | Standard |
| The below are modified TE-8K-MD’s | ||
| 0157-0008-0212 | TE-8K-MD 3 Phase 3HP with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0812 | TE-8K-MD 3 Phase 5HP with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0412 | TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0230 | TE-8K-MD 3 Phase 3HP with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0830 | TE-8K-MD 3 Phase 5HP with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0430 | TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0232 | TE-8K-MD 3 Phase 3HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0157-0008-0832 | TE-8K-MD 3 Phase 5HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0157-0008-0432 | TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Mica Teflon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0157-0008-0200 | 1 | TE-8K-MD, 3 Phase, Complete Standard Pump | |
| 1 | 0157-0014-1000 | 8 | 1/4″-20 x 1″ Long Screw (Stainless) |
| 2 | 0157-0023-1000 | 8 | 1/4″ ID x 5/8″ OD Washer (Stainless) |
| 3 | 0157-0052-1000 | 1 | Pump Housing with 2” MPT Inlet & 1-1/2″ MPT Outlet (Glass Filled Kynar) |
| 4 | 0157-0011-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (Viton) |
| 5 | 0157-0001-1000 | 1 | Front Thrust Washer (Ceramic) |
| 6 | 0157-0002-1000 | 1 | Shaft (Ceramic) |
| 7 | 0157-0050-0500 | 1 | Impeller with Carbon Bushing (Glass Filled Kynar) |
| 8 | 0157-0009-1000 | 1 | Rear Thrust Washer (Ceramic) |
| 9 | 0157-0053-1000 | 1 | Rear Housing (Glass Filled Kynar) |
| 10 | 0157-0005-0100 | 1 | Drive Magnet |
| 11 | 0157-0008-0010 | 1 | Motor Bracket (Metal) |
| 12 | 0160-0031-1000 | 4 | 1/2″-13 x 1″ Long Screw (Stainless) |
| 13 | 0160-0032-1000 | 4 | 1/2″ ID x 1-1/4″ OD Washer (Stainless) |
| 13 | 0157-0012-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 3 HP |
| WEK | 0157-0086-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9) |
| PLM | 0157-0096-0100 | 1 | Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0157-0032-1000 | 1 | 1/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton) |
| 4 | 0157-0058-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (EPDM) |
| 5 | 0157-0043-1000 | 1 | Front Thrust Washer (Hastelloy C) |
| 6 | 0157-0045-1000 | 1 | Shaft (Hastelloy C) |
| 6 | 0157-0099-1000 | 1 | Shaft, 3 Flats (Ceramic) |
| 6 | 0157-0150-1000 | 1 | Shaft (316 Stainless) |
| 7 | 0157-0050-0200 | 1 | Impeller with Ryton Bushing (Glass Filled Kynar) |
| 7 | 0157-0050-0700 | 1 | Impeller with Mica Teflon Bushings (Glass Filled Kynar) |
| 8 | 0157-0047-1000 | 1 | Rear Thrust Washer (Hastelloy C) |
| 11 | 0157-0100-1000 | 1 | Motor Bracket (Plastic) |
| 14 | 0157-0065-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 5 HP |
| 0157-0042-1000 | 1 | Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs) | |
| 1 | Motor, Washdown, 3 Phase (Contact March for Additional Specs) | ||
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
- Dimensional Drawing TE-8K-MD 3Ph 3HP (opens in new tab)
- Dimensional Drawing TE-8K-MD 3Ph 5HP (opens in new tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0157-0012-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 3 HP / 2.2 kW, 230/460V, 7.26/3.63 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 3 HP / 2.2 kW, 380V, 4.3 AMPS, 2850 RPM (Usable at 190/220V)
0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14 AMPS, 2850 RPM (Usable at 190/220V)
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-8K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.
Great for Chemicals Including
The TE-8K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8K-MD. Chemical Resistance Chart (opens in new tab)

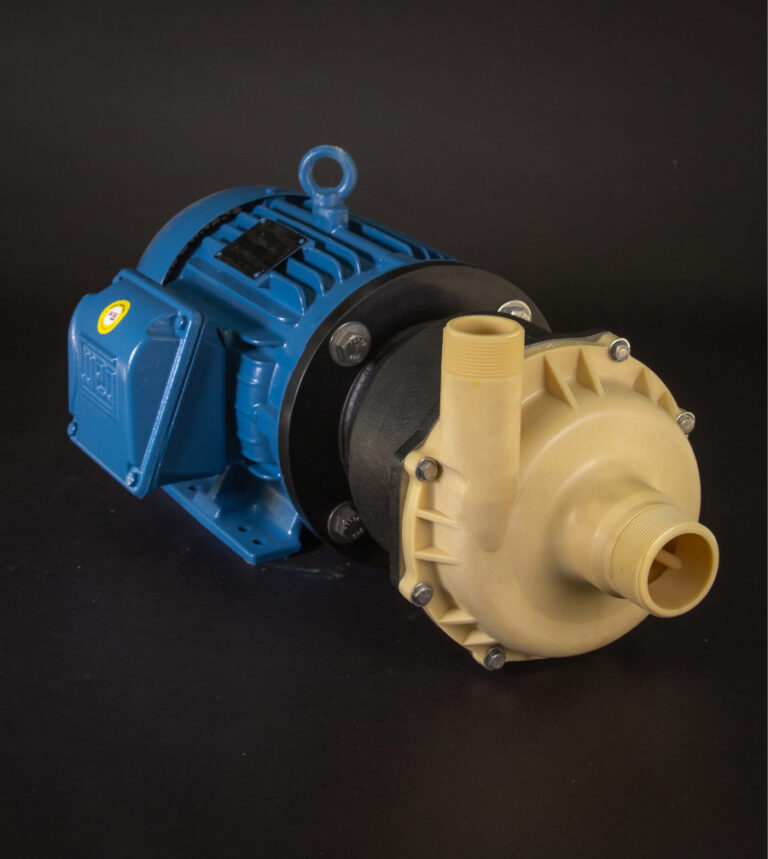

March Pump’s industrial TE-8K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first is a 208/230V 60 hertz 3 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 3 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-8K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8K-MD is suitable for your application, please contact March Pump.
