| Unit System | 60Hz US | Metric |
|---|---|---|
| Max Flow | 5 GPM | 18.9 LPM |
| Max Head | 13 FT | 4 M |
| Power | 0.02 HP | 0.015 KW |
| Unit System | 50Hz US | Metric |
|---|---|---|
| Max Flow | 4.9 GPM | 18.5 LPM |
| Max Head | 8.9 FT | 2.7 M |
| Power | 0.018 HP | 0.014 KW |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8″FPT & 3/4″MPT
Outlet: 1/4″MPT
Submersible: Yes
- Wet End:Polypropylene (Front Housing, Impeller), Nylon (Rear Housing) Viton (O-Ring), Buna N (O-Ring, Cooling Tube Seal), 316 Stainless Steel (Shaft, Cooling Tube), Ceramic (Thrust Washer), Ceramic Magnet
- Uses:Submersible or Open Air
- When submerged, the following is also in contact with the solution:Epoxy, Buna N, Cord
- Max Internal Pressure:25 PSI / 1.7 bar
- Max Internal Temperature:130 °F / 54 °C
- Ignition Protected per SAE J1171 and ISO 8846:Rated IP67
- UL Listed Motor:
- Note:Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March LC-2 Pump Curve (opens in new tab)
- March LC-2M-MD Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
- March Marine Pump Maintenance And Trouble Shooting Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0125-0141-0100 | LC-2M-MD 115V | |
| 0125-0142-0100 | LC-2M-MD 230V |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0125-0141-0100 | 1 | LC-2M-MD, 1 Phase, 115V, Complete Standard Pump | |
| 0125-0142-0100 | 1 | LC-2M-MD, 1 Phase, 230V, Complete Standard Pump | |
| 1 | 0115-0062-1000 | 6 | #7-19 x 1-7/16″ Long Self-Tapping Screw (Stainless) |
| 2 | 0125-0056-1000 | 1 | Cover with 3/8″ FPT x 3/4″ MPT Inlet (Polypropylene) |
| 3 | 0125-0066-1000 | 1 | 3/32″ CS x 2-3/16″ OD “O” Ring (Buna N) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0125-0125-1000 | 1 | Shaft (Stainless) |
| 6 | 0125-0055-0100 | 1 | Impeller with Bare Ceramic Magnet (Polypropylene) |
| 7 | 0125-0131-0100 | 1 | Rear Housing & Plug with 1/4″ MPT Outlet (Nylon) |
| 8 | 0125-0124-1000 | 1 | 1/16″ CS x 2-3/8″ OD Bracket “O” Ring (Buna N) |
| 9 | 0125-0007-1000 | 2 | Cooling Tube Seal (Buna N) |
| 10 | 0125-0130-1000 | 4 | #8-18 x 1/2″ Long Self-Tapping Screw (Stainless) |
| 11 | 0125-0113-0100 | 1 | Marine Base (Polypropylene) |
| 12 | 0125-0110-1000 | 1 | Motor Bracket Plug (Polypropylene) |
| 13 | 0210-0008-1000 | 1 | 1/16″ CS x 7/16″ OD “O” Ring (Viton) |
| 14 | Not Available | N/A | L.C. Epoxy Motor Assembly |
Dimensional Drawings
- Dimensional Drawing LC-2M-MD 115V (opens in new tab)
- Dimensional Drawing LC-2M-MD 230V (opens in new tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
115V Motor
6 Foot Cord, Submersible
60Hz: 1Ph 0.2HP/0.015kW, 0.92 AMPS, 3450RPM
50Hz: 1Ph 0.18HP/0.014kW, 1.1 AMPS, 2850RPM
230V Motor
6 Foot Cord, Submersible
60Hz: 1Ph 0.025HP/0.019kW, 0.53 AMPS, 3450RPM
50Hz: 1Ph 0.18HP/0.014kW, 0.72 AMPS, 2850RPM
Please contact us for alternative motor data

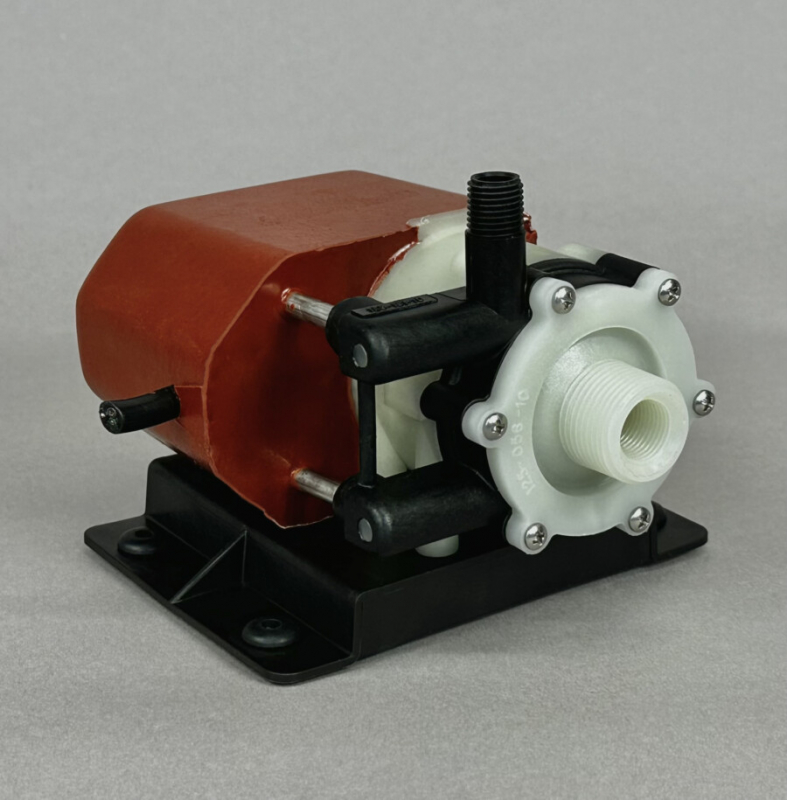

March Pump’s industrial LC-2M-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 5 gallons per minute at 1 foot, and its maximum head is 13 Feet (5.5PSI). It is capable of 12,000 BTU per hour. The LC-2M-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Nylon, Viton, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Buna N, and the Cord are also in contact with the solution. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.02 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-2M-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-2M-MD is suitable for your application, please contact March Pump.
The pump is Ignition Protected per SAE J1171 and ISO 8846.
