| System | US | Metric |
| Max Flow | 10.5 GPM | 39 LPM |
| Max Head | 42 FT | 12.8 M |
| Power | 0.125 HP | 0.093 KW |
Electrical/Air: 29 PSI or 4CFM
Inlet: 3/4″OD
Outlet: 3/4″OD
- Wet End: Polypropylene (Front and Rear Housing. Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March BC-3CP-MD-AM and BC-3AP-MD-AM Curve (opens in new tab)
- Pumps With Air Motors Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0130-0018-0900 | BC-3AP-MD-AM | Standard |
| The below are modified BC-3AP-MD-AM’s | ||
| 0130-0018-0912 | BC-3AP-MD-AM | Teflon O-Ring |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0130-0018-0900 | 1 | BC-3AP-MD-AM Complete Standard Pump | |
| 1 | 0823-0008-1000 | 4 | #10-32 x 1-1/2” Long Screw (Stainless) |
| 2 | 0130-0064-1000 | 1 | Cover with 3/4” OD Inlet (Polypropylene) |
| 3 | 0130-0033-1000 | 1 | 3/32” CS x 2-13/16” OD Cover “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0130-0069-0200 | 1 | Encapsulated Impeller (Polypropylene) |
| 7 | 0130-0102-1000 | 1 | Rear Housing with 3/4” OD Outlet (Polypropylene) |
| 8 | 0130-0043-0300 | 1 | Drive Magnet |
| 9 | 0130-0066-0100 | 1 | Motor Bracket (Plastic) |
| 10 | 0115-0023-1000 | 4 | #8-32 x 1-1/8” Long Screw |
| 11 | 0858-0004-1000 | 4 | #8 Washer |
| 12 | 0125-0106-1000 | 1 | Base |
| 13 | 0986-0001-0100 | 1 | Connecting Bracket |
| 14 | 0210-0038-1000 | 2 | #8-32 Set Screw |
| 15 | 0140-0014-1000 | 4 | #8 External Tooth Lock Washer |
| 16 | 0410-0039-1000 | 4 | #8 Nut |
| 17 | 0986-0002-1000 | 1 | Air Motor |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0130-0121-1000 | 1 | 3/32” CS x 2-13/16” OD “O” Ring (Teflon Encapsulated Viton) |
| 5 | 0130-0024-1000 | 1 | Shaft (316SS) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0986-0002-1000 Motor
0.125HP/0.093kW, 29PSI and 4CFM, 1/8″NPT Air Connection
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the BC-3AP-MD-AM Magnetic Drive Pump include chemical transfer and chemical recirculation.
Great for Chemicals Including
The BC-3AP-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-3AP-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-3AP-MD-AM. Chemical Resistance Chart (opens in new tab)

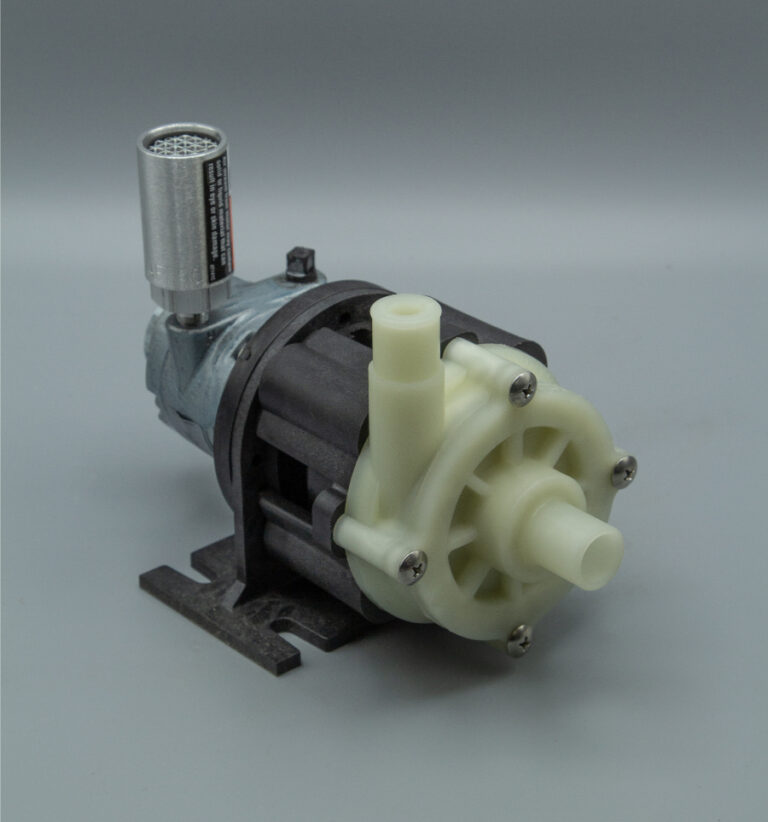

March Pump’s industrial BC-3AP-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 5 feet, and its maximum head is 42 Feet (18PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 3/4 inch smooth, and the outlet is 3/4 inch smooth. The standard motor is a 0.125 Horsepower compressed air motor which requires 29PSI. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March BC-3AP-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-3AP-MD-AM is suitable for your application, please contact March Pump.
