| System | US | Metric |
| Max Flow | 44 GPM | 166 LPM |
| Max Head | 86 FT | 26.2 M |
| Power | 0.95 HP | 0.708 KW |
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2″FPT
Outlet: 1″MPT
- Wet End: Polypropylene (Impeller,Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ryton/Teflon/Carbon (Bushing)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March TE-7-AM Curve (opens in new tab)
- March Series TE-7-AM Pump Manual (opens in new tab)
- Manual for 2AM and 8AM Air Motor (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0155-0258-0100 | TE-7P-MD-AM | Standard |
| The below are modified TE-7P-MD-AM’s | ||
| 0155-0258-0112 | TE-7P-MD-AM | Teflon O-Ring |
| 0155-0258-0130 | TE-7P-MD-AM | Carbon Bushing |
| 0155-0258-0132 | TE-7P-MD-AM | Mica Teflon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0155-0258-0100 | 1 | TE-7P-MD-AM Complete Standard Pump | |
| 1 | 0155-0014-1000 | 6 | 1/4″-20 x 2″ Long Screw (Stainless) |
| 2 | 0155-0021-1000 | 6 | 1/4” ID x 1/2” OD Washer (Stainless) |
| 3 | 0155-0011-1000 | 1 | Front Housing (Polypropylene) |
| 4 | 0155-0010-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (Viton) |
| 5 | 0155-0009-1000 | 1 | Thrust Washer (Ceramic) |
| 6 | 0155-0039-1000 | 1 | 4.070″ Long Shaft (Ceramic) |
| 7 | 0155-0159-0500 | 1 | Impeller w/Teflon/Ryton/Carbon Bushing (Polypropylene) |
| 8 | 0155-0091-0100 | 1 | Rear Housing w/Ceramic Thrust Washer (Polypropylene) |
| 9 | 0155-0130-0200 | 1 | Drive Magnet |
| 10 | 0155-0260-0000 | 1 | Pump Support Bracket (Aluminum) |
| 11 | 0161-0042-1000 | 2 | 3/8”-16 x 1-1/4” Long Screw (Stainless) |
| 12 | 0155-0017-1000 | 2 | 3/8”-16 ID x 3/4” Long Screw (Stainless) |
| 13 | 0155-0019-1000 | 4 | 3/8” ID x 5/8” OD Washer (Stainless) |
| 14 | 1095-0015-0010 | 1 | Motor Bracket (Aluminum) |
| 15 | 0155-0257-1000 | 1 | Air Motor |
| WEK | 0155-0255-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0155-0071-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (Teflon Encapsulated Viton) |
| 4 | 0155-0105-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (EPDM) |
| 5 | 0155-0084-1000 | 1 | Thrust Washer (Hastelloy “C”) |
| 5 | 0155-0149-1000 | 1 | Thrust Washer (Silicon Carbide) |
| 5 | 0155-0233-1000 | 1 | Thrust Washer (Zirconium) |
| 6 | 0155-0146-1000 | 1 | 4.070″ Long Shaft (Stainless) |
| 6 | 0155-0234-1000 | 1 | 4.070″ Long Shaft (Hastelloy “C”) |
| 7 | 0155-0159-0200 | 1 | Impeller w/Carbon Bushing (Polypropylene) |
| 7 | 0155-0159-0400 | 1 | Impeller w/Mica Teflon Bushing (Polypropylene) |
| 14 | 0155-0092-0100 | 1 | Motor Bracket (Plastic) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) | |
| Flanges (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0155-0257-1000 Motor
0.95HP/0.708kW, 100PSI and 30CFM, 1/4″NPT Air Connection
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-7P-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.
Great for Chemicals Including
The TE-7P-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7P-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7P-MD-AM. Chemical Resistance Chart (opens in new tab)

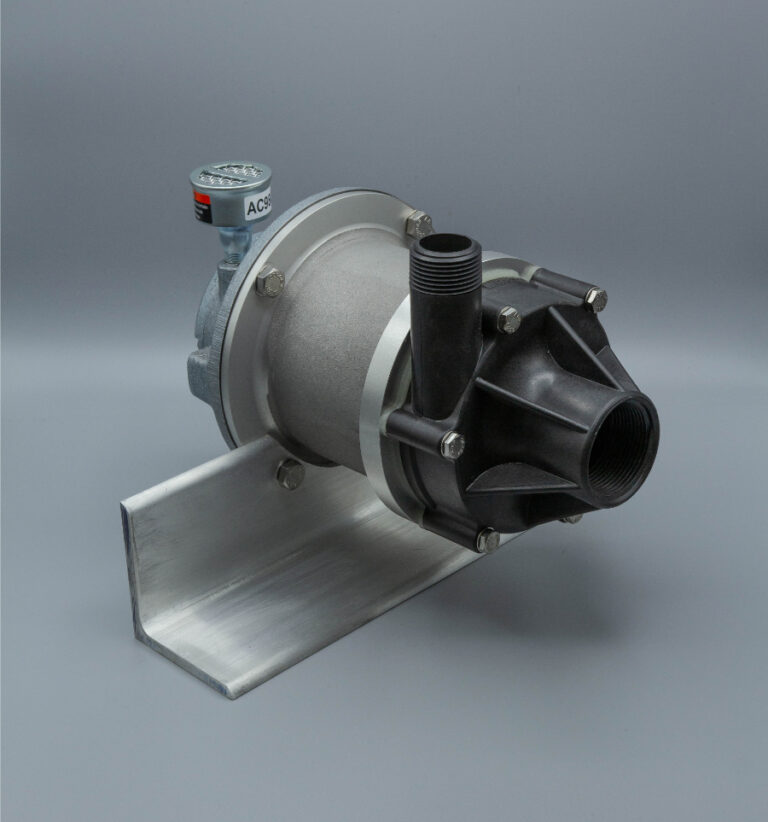

March Pump’s industrial TE-7P-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 44 gallons per minute at 15 feet, and its maximum head is 86 Feet (37PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. The standard motor is a Compressed Air Motor which may require 95PSI and 30CFM. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7P-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7P-MD-AM is suitable for your application, please contact March Pump.
