| System | US | Metric |
| Max Flow | 9 GPM | 34 LPM |
| Max Head | 28 FT | 8.8 M |
| Power | 0.125 HP | 0.093 KW |
Electrical/Air: 21PSI and 3CFM
Inlet: 1/2″MPT
Outlet: 1/2″MPT
- Wet End: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
- Max Internal Pressure: 75 PSI / 5.2 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March MDX-MT3-AM and MDK-MT3-AM Pump Curve (opens in new tab)
- Pumps with Air Motors Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0135-0036-0200 | MDX-MT3-AM | Standard |
| The below are modified MDX-MT3-AM’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0135-0036-0200 | 1 | MDX-MT3-AM Complete Standard Pump | |
| 1 | 0135-0181-1000 | 6 | #10-32 x 1-1/8″ Lg. Screw (Stainless) |
| 2 | 0150-0051-1000 | 6 | #10 Washer |
| 3 | 0135-0088-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Ryton) |
| 4 | 0135-0046-1000 | 1 | 1/16″ CS x 2-7/8″ OD “O” Ring (Viton) |
| 5 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 6 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 7 | 0135-0113-0200 | 1 | Impeller (Ryton) |
| 8 | 0135-0087-1000 | 1 | Rear Housing (Ryton) |
| 9 | 0130-0043-0300 | 1 | 0.375″ Bore Drive Magnet |
| 10 | 0135-0135-0000 | 1 | Motor Bracket (Plastic) |
| 11 | 0410-0039-1000 | 4 | #8 Nut |
| 12 | 0858-0003-1000 | 4 | #8 Split Lock Washer |
| 13 | 0986-0001-0100 | 1 | Connecting Bracket |
| 14 | 0210-0038-1000 | 2 | #8-32 Set Screw |
| 15 | 0125-0106-1000 | 1 | Base |
| 16 | 0858-0004-1000 | 4 | #8 Washer |
| 17 | 0115-0023-1000 | 4 | #8-32 x 1-1/8″ Long Screw |
| 18 | 0986-0002-1000 | 1 | Air Motor |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0135-0128-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Polypropylene) |
| 4 | 0135-0122-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (Teflon) |
| 4 | 0750-0150-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (EPDM) |
| 7 | 0135-0129-0200 | 1 | Impeller (Polypropylene) |
| 8 | 0135-0127-1000 | 1 | Rear Housing (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0986-0002-1000 Motor
0.125HP/0.093kW, 21PSI and 3CFM, 1/8″NPT Air Connection
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the MDX-MT3-AM Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.
Great for Chemicals Including
The MDX-MT3-AM has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, DI Water, and many more chemicals. The MDX-MT3-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDX-MT3-AM. Chemical Resistance Chart (opens in new tab)

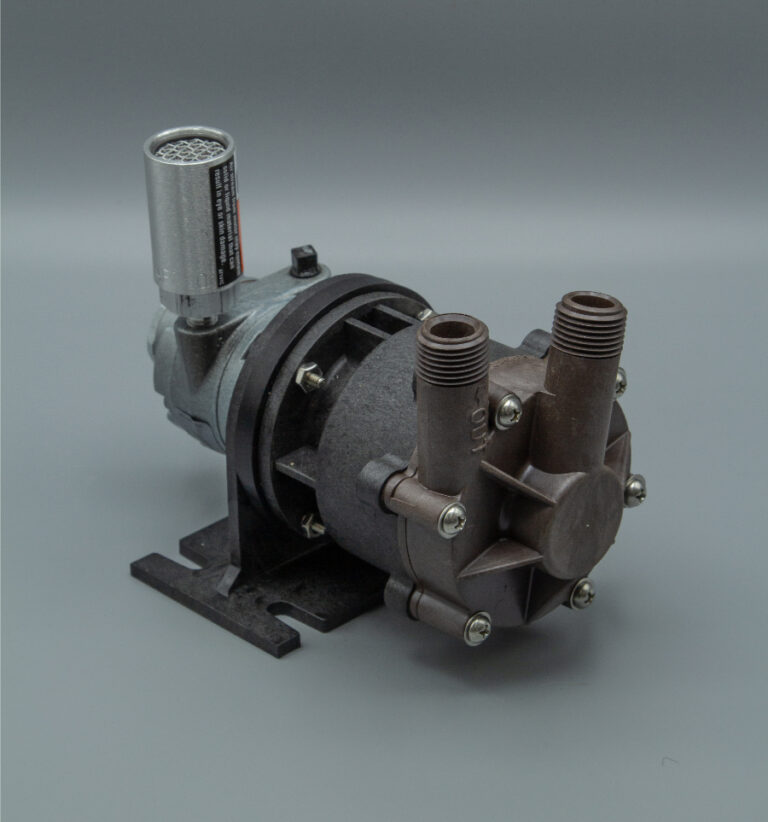

March Pump’s industrial MDX-MT3-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 9 gallons per minute at 1 foot, and its maximum head is 28 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 0.125 Horsepower Compressed Air Motor which requires 21PSI. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March MDX-MT3-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDX-MT3-AM is suitable for your application, please contact March Pump.
