| System | US | Metric |
| Max Flow | 2.7 GPM | 11 LPM |
| Max Head | 10.6 FT | 3.3 M |
| Power | 0.006 HP | 0.004 KW |
Electrical/Air: 24V Range 0-26V
Inlet: 3/8″FPT
Outlet: 3/8″OD
- Wet End: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March 893 Curve
- 893 Pump Manual (öffnet in neuem Tab)
- March Pump General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0893-0001-0500 | 893-05 | Standard |
| 0893-0001-0561 | 893-05 | Polypropylene Encapsulated Impeller and Teflon O-Ring |
| 0893-0001-0562 | 893-05 | Polypropylene Encapsulated Impeller and EDPM O-Ring |
| 0893-0001-0563 | 893-05 | Polypropylene Encapsulated Impeller and Viton O-Ring |
| The below are modified 893-05’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0893-0001-0500 | 1 | 893-05 Complete Standard Pump | |
| 1 | 0115-0062-1000 | 4 | #7-19 x 1-7/16″ Long Self Tapping Screw (Stainless) |
| 2 | 0893-0004-1000 | 1 | Cover with 3/8″ FPT Inlet (Noryl) |
| 3 | 0115-0018-1000 | 1 | 1/16″ CS x 1-7/16″ OD O-Ring (Buna N) |
| 4 | 0115-0008-0100 | 1 | Impeller (Nylon/Ceramic Magnet) |
| 5 | 0115-0032-1000 | 1 | Shaft (316 Stainless Steel) |
| 6 | 0115-0033-1000 | 1 | Rear Thrust Washer (Carbon/Teflon) |
| 7 | 0893-0003-1000 | 1 | Rear Housing with 3/8″ OD Outlet (Noryl) |
| 8 | 0115-0101-0100 | 1 | Drive Magnet |
| 9 | 0893-0016-1000 | 4 | Screw #4-40 x 1/4″ Long |
| 10 | 0893-0002-1000 | 1 | Motor Bracket |
| 11 | 0125-0110-1000 | 1 | Plug |
| 12 | 0893-0022-1000 | 1 | Motor 24V DC Brush Motor |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0115-0061-1000 | 2 | 1/16″ CS x 1-7/16″ OD O-Ring (Viton) |
| 3 | 0115-0069-1000 | 2 | 1/16″ CS x 1-7/16″ OD O-Ring (Teflon) |
| 3 | 0750-0146-1000 | 2 | 1/16″ CS x 1-7/16″ OD O-Ring (EPDM) |
| 4 | 0115-0119-1000 | 1 | Impeller (Polypropylene) |
| 5 | 0115-0042-1000 | 1 | Shaft (Ceramic) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0893-0022-1000
20″ Leads
24V, 0.5 AMPS, 4000 RPM, 0.006 HP / 0.004 kW
Voltage Range 0-26V.
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the 893-05 Magnetic Drive Pump include computer cooling, photographic processing equipment, refrigeration systems, and water displays.
Great for Chemicals Including
The 893-05 has pumped many chemicals. The 893-06 may have been modified to handle certain chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 893-05. Chemical Resistance Chart (öffnet in neuem Tab)

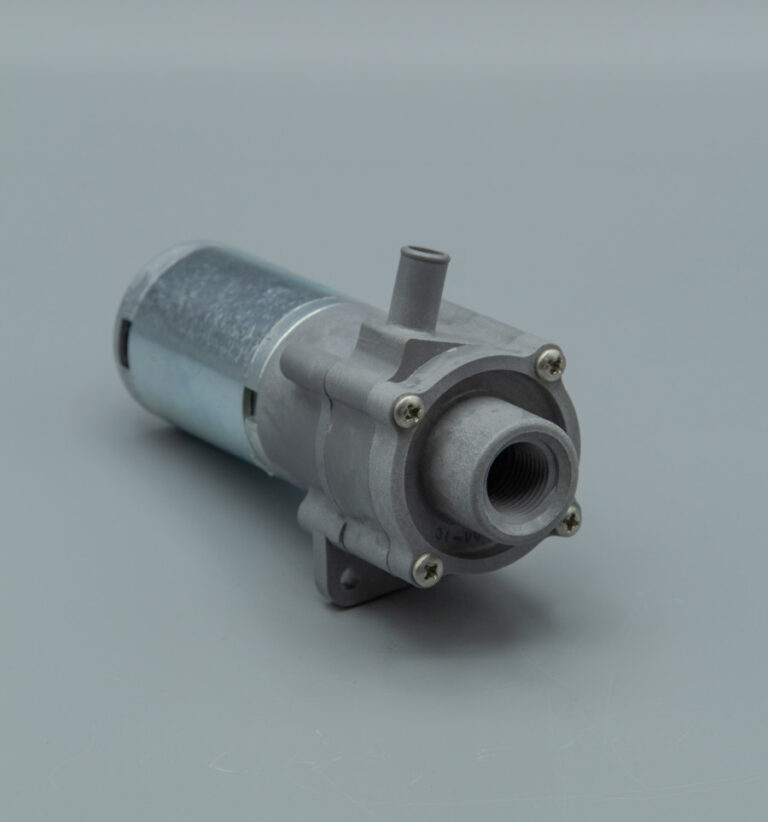

March Pump’s industrial 893-05 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and solar equipment. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (or around 4.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Noryl, Nylon, Carbon/Teflon, Buna N, Stainless Steel, and Ceramic Magnet. The inlet connection is 3/8 inch female pipe thread, and the outlet is 3/8 inch smooth. The standard motor is a 0.006 Horsepower DC Brushtype Motor, available in 24 Volts. The 24 Volt Motor has an operating range from 0 to 26 Volts. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March 893-05 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 893-05 is suitable for your application, please contact March Pump.
