| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 14 GPM | 53 LPM |
| Max Head | 21.5 FT | 6.55 M |
| Power | 0.1 HP | 0.074 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 13.2 GPM | 50 LPM |
| Max Head | 15.4 FT | 4.7 M |
| Power | 0.1 HP | 0.074 KW |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1″MPT (Self Priming Chamber)
Outlet: 1/2″MPT (Pump Outlet
Capable of a Maximum Suction Lift of 10 Feet
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring), High Density Polyethylene (750 Self Priming Chamber)
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March Series 4 Pump Curve (öffnet in neuem Tab)
- March Series 4 Pump Manual (öffnet in neuem Tab)
- March Pump Self Priming General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0145-0058-0100 | BC-4C-MD 115V with 750 Self Priming Chamber | Standard |
| 0145-0059-0100 | BC-4C-MD 230V with 750 Self Priming Chamber | Standard |
| The below are modified BC-4A-MD with 750 Self Priming Chambers |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0145-0058-0100 | 1 | BC-4C-MD, 1 Phase, 115V, Complete Standard Pump with Priming Chamber | |
| 0145-0059-0100 | 1 | BC-4C-MD 1 Phase, 230V, Complete Standard Pump with Priming Chamber, | |
| 0750-0227-0100 | 1 | Complete Self-Priming Reservoir with Filler Cap (Items: A & B) | |
| A | 0155-0182-1000 | 1 | Filler Cap (Polypropylene) |
| B | 0750-0227-1000 | 1 | Reservoir (Polyethylene) |
| 1 | 0150-0021-1000 | 7 | #8-32 x 1-3/4” Long Screw (Stainless) |
| 2 | 0150-0032-1000 | 1 | Cover with 1” FPT Inlet (Polypropylene) |
| 3 | 0750-0986-1000 | 1 | 0.078” CS x 2.834” ID “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0145-0033-0200 | 1 | Encapsulated Impeller (Polypropylene) |
| 7 | 0150-0031-0100 | 1 | Rear Housing with 1/2″ MPT Outlet & Thrust Washer (Polypropylene/Ceramic) |
| 8 | 0145-0027-0100 | 1 | Drive Magnet |
| 9 | 0145-0010-1000 | 1 | Motor Bracket (Plastic) |
| 10 | 0618-0027-1000 | 4 | #8-32 x 5/8” Long Screw (Stainless) |
| 11 | 0858-0004-1000 | 4 | #8 Flat Washer (Stainless) |
| 12 | 0145-0035-1000 | 1 | Motor, 1 Phase, 115V, 50/60 Hz |
| 12 | 0145-0036-1000 | 1 | Motor, 1 Phase, 230V, 50/60 Hz |
| WEK | 0145-0046-0200 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0150-0212-1000 | 1 | 0.078” CS x 2.893” ID “O” Ring (Teflon Encapsulated Viton) |
| 3 | 0750-0053-1000 | 1 | 0.078″ CS x 2.834″ ID “O” Ring (EPDM) |
| 5 | 0939-0003-1000 | 1 | Shaft (316SS) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Motor Information
0145-0035-1000
3 Foot Cord
60Hz: 1Ph 115V 0.1HP/0.075kW, 1.9 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.1HP/0.075kW, 1.9 AMPS, 2850 RPM
0145-0036-1000
3 Foot Cord
60Hz: 1Ph 230V 0.083HP/0.062kW, 0.75 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.083HP/0.062kW, 0.75 AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the BC-4C-MD Magnetic Drive Pump include chemical transfer, chemical recirculation, and plating.
Great for Chemicals Including
The BC-4C-MD with 750 Self Priming Chamber has pumped numerous chemicals. The BC-4C-MD with 750 Self Priming Chamber may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-4C-MD with 750 Self Priming Chamber. Chemical Resistance Chart (öffnet in neuem Tab) and Supplemental HDPE Chemical Resistance Chart (öffnet in neuem Tab)

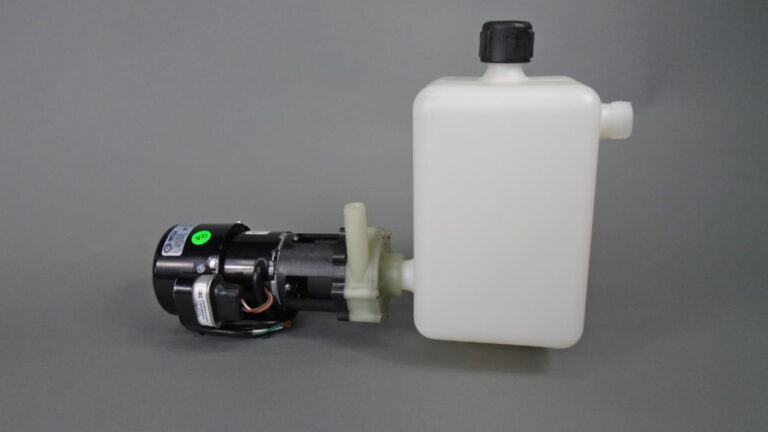

March Pump’s industrial BC-4C-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI). It has a maximum suction lift of 10 feet. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ceramic, and High Density Polyethylene. The inlet connection is 1 inch male pipe thread on the 750 self priming chamber, and the outlet is 1/2 inch male pipe thread on the pump. The standard motor is a 1 Phase 115V or 230V 0.1 Horsepower blast cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March BC-4C-MD with 750 Self Priming Chamber centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-4C-MD with 750 Self Priming Chamber is suitable for your application, please contact March Pump.
