| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 10 GPM | 37.9 LPM |
| Max Head | 17 FT | 5.1 M |
| Power | 0.066 HP | 0.05 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 9.2 GPM | 35 LPM |
| Max Head | 12.1 FT | 3.7 M |
| Power | 0.066 HP | 0.05 KW |
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1/2″MPT
Outlet: 1/2″MPT
- Wet End: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
- Motor Options: Available in Explosion Proof
- Max Internal Pressure: 75 PSI / 5.2 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March TE-MDX-MT3 and TE-MDK-MT3 Curve (opens in new tab)
- March MDX/K-MT3 and TE-MDX/K-MT3 Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0135-0088-0100 | TE-MDX-MT3 | Standard |
| The below are modified TE-MDX-MT3’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0135-0088-0100 | 1 | TE-MDK-MT3, 1 Phase, Complete Standard Pump | |
| 1 | 0823-0008-1000 | 6 | #10-32 x 1-1/2″ Long Screw (Stainless) |
| 2 | 0135-0088-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Ryton) |
| 3 | 0135-0046-1000 | 1 | 1/16″ CS x 2-7/8″ OD “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0135-0113-0200 | 1 | Impeller (Ryton) |
| 7 | 0135-0087-1000 | 1 | Rear Housing (Ryton) |
| 8 | 0130-0043-0300 | 1 | 0.375″ Bore Drive Magnet |
| 9 | 0135-0089-0000 | 1 | Motor Bracket (Plastic) |
| 10 | 0150-0050-1000 | 4 | #10-32 x 3/4″ Long Screw (Stainless) |
| 11 | 0150-0051-1000 | 4 | #10 Washer |
| 12 | 0150-0213-1000 | 1 | Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 2 | 0135-0128-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Polypropylene) |
| 4 | 0135-0122-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (Teflon) |
| 4 | 0750-0150-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (EPDM) |
| 6 | 0135-0129-0200 | 1 | Impeller (Polypropylene) |
| 7 | 0135-0127-1000 | 1 | Rear Housing (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-MDX-MT3 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.
Great for Chemicals Including
The TE-MDX-MT3 has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-MDX-MT3 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-MDX-MT3. Chemical Resistance Chart (opens in new tab)

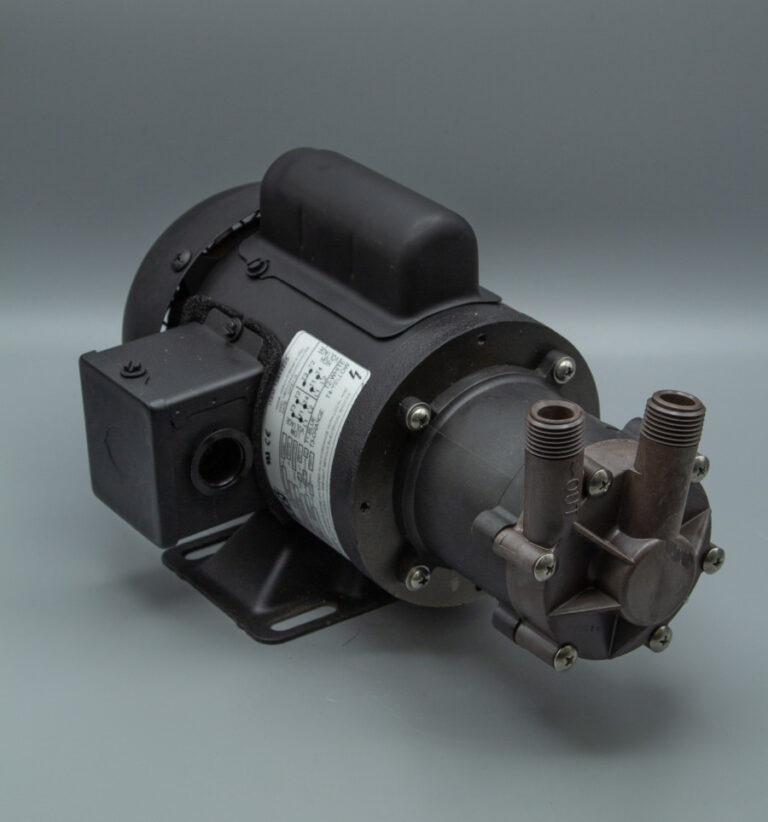

March Pump’s industrial TE-MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 1 foot, and its maximum head is 17 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-MDX-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-MDX-MT3 is suitable for your application, please contact March Pump.
