March Pump Series 7.5 are centrifugal magnetic drive pumps which have a maximum flow of 82GPM and a maximum head of 85 feet. They are available in Polypropylene and Virgin Kynar. The inlet is 2 inch and the outlet is 1.5 inch. They use a 2 horsepower three phase (230V/460V) motors. Explosion proof motors for hazardous locations and 575V motors are additional options.
Series 7.5
March Pump Series 7.5 are centrifugal magnetic drive pumps which have a maximum flow of 82GPM and a maximum head of 85 feet.
4 pumps at a glance
-

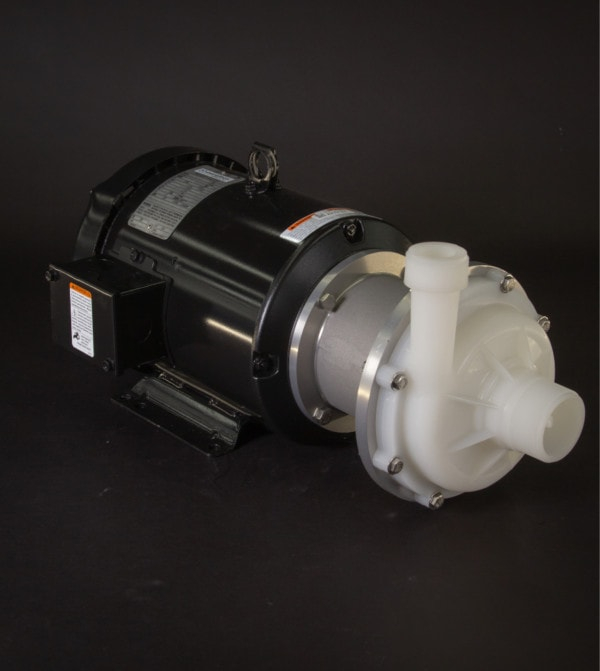

TE-7.5K-MD Magnetic Drive Pump
Max Flow (60Hz)82 GPM / 310 LPM
Max Head (60Hz)85 FT / 26 M
Power (60Hz)2 HP / 1.49 KW
View details
-

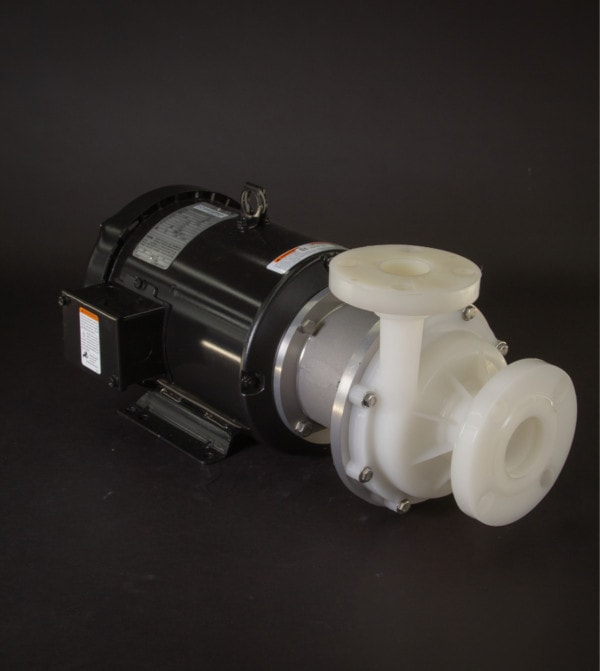

TE-7.5K-MD with Flanges Magnetic Drive Pump
Max Flow (60Hz)82 GPM / 310 LPM
Max Head (60Hz)85 FT / 26 M
Power (60Hz)2 HP / 1.49 KW
View details
-

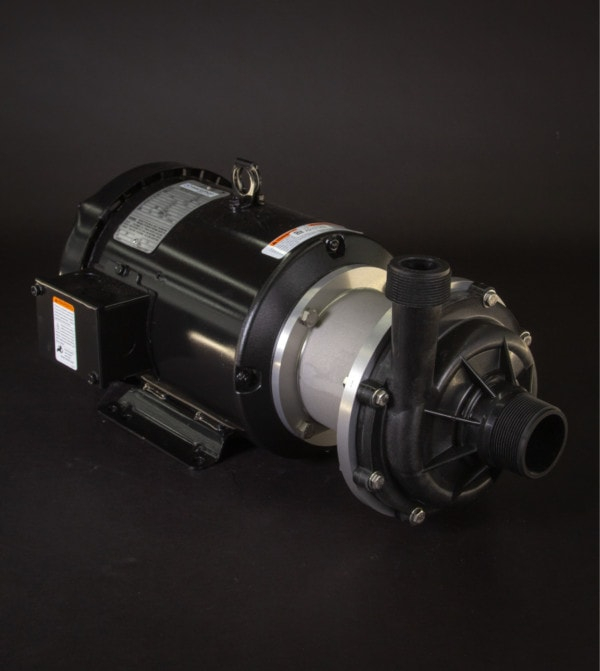

TE-7.5P-MD Magnetic Drive Pump
Max Flow (60Hz)82 GPM / 310 LPM
Max Head (60Hz)85 FT / 26 M
Power (60Hz)2 HP / 1.49 KW
View details
-

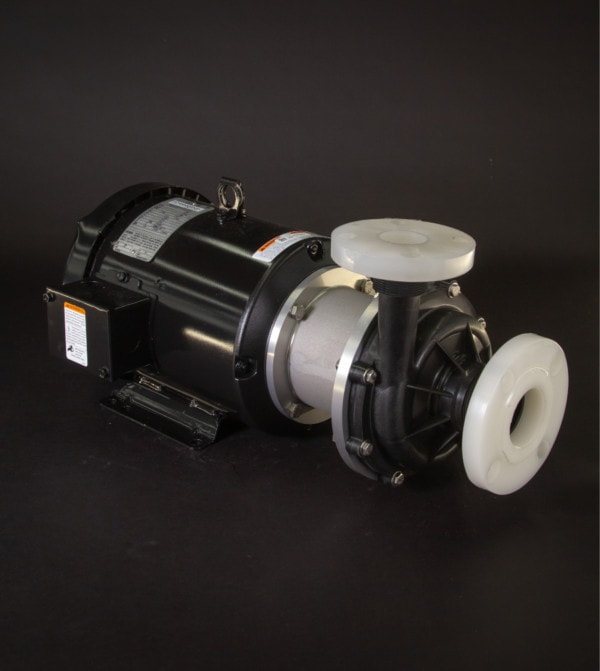

TE-7.5P-MD with Flanges Magnetic Drive Pump
Max Flow (60Hz)82 GPM / 310 LPM
Max Head (60Hz)85 FT / 26 M
Power (60Hz)2 HP / 1.49 KW
View details
