March Pump Series 6 are centrifugal magnetic drive pumps which have a maximum flow of 38GPM and a maximum head of 49 feet. They are available in Polypropylene, Ryton, and Kynar materials. The inlet is 1 inch and the outlet is 3/4 inch. They use 1/2 horsepower motors, in both single (115V/230V) and three phase (230V/460V). Explosion proof motors for hazardous locations and 575V motors are additional options.
Series 6
March Pump Series 6 are centrifugal magnetic drive pumps which have a maximum flow of 38GPM and a maximum head of 49 feet.
3 pumps at a glance
-

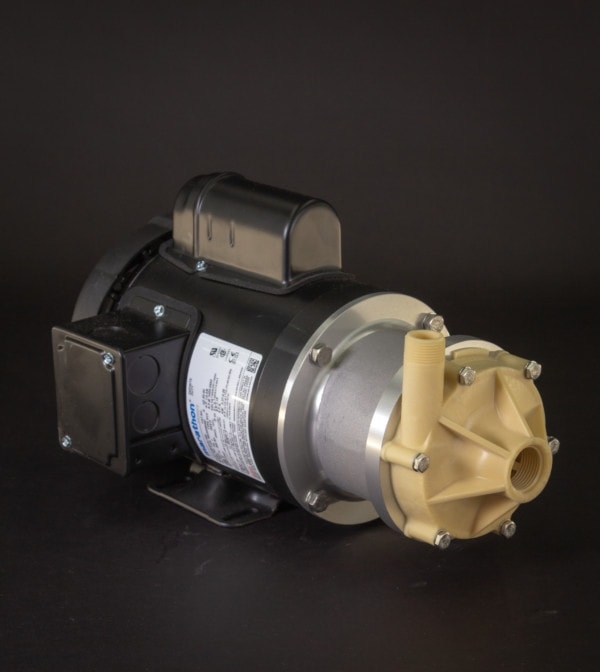

TE-6K-MD 1&3 Ph Magnetic Drive Pump
Max Flow (60Hz)38 GPM / 144 LPM
Max Head (60Hz)49 FT / 15 M
Power (60Hz)0.5 HP / 0.279 KW
View details
-

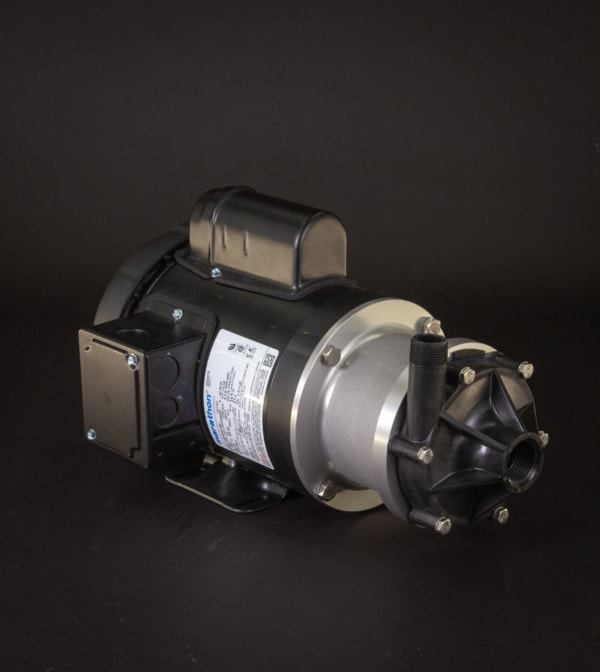

TE-6P-MD 1&3 Ph Magnetic Drive Pump
Max Flow (60Hz)38 GPM / 144 LPM
Max Head (60Hz)49 FT / 15 M
Power (60Hz)0.5 HP / 0.372 KW
View details
-
TE-6T-MD 1&3 Ph Magnetic Drive Pump
Max Flow (60Hz)38 GPM / 144 LPM
Max Head (60Hz)49 FT / 15 M
Power (60Hz)0.5 HP / 0.372 KW
View details
