| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 18 GPM | 68.1 LPM |
| Max Head | 29 FT | 8.85 M |
| Power | 0.2 HP | 0.149 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 15.9 GPM | 60.5 LPM |
| Max Head | 20.7 FT | 6.3 M |
| Power | 0.2 HP | 0.149 KW |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz or 3Ph 230/460V 50/60Hz
Inlet: 1″FPT
Outlet: 1/2″MPT
- Wet End: Natural Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
- Motor Options: Available in Explosion Proof
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87° C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March Pump TE-5 60Hz Curves (opens in new tab)
- March Pump TE-5 50Hz Curves (opens in new tab)
- March TE-5 Plastic Series Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0150-0214-0500 | TE-5NK-MD 1 Phase with Weg Motor | Standard |
| The below are modified TE-5NK-MD’s | ||
| 0150-0214-0512 | TE-5NK-MD 1 Phase with Weg Motor | Teflon O-RIng |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0150-0214-0500 | 1 | TE-5NK-MD, 1 Phase, Complete Standard Pump | |
| 1 | 0150-0021-1000 | 7 | #8-32 x 1-3/4” Long Screw (Stainless) |
| 2 | 0150-0182-1000 | 1 | Cover with 1” FPT Inlet (Kynar) |
| 3 | 0750-0986-1000 | 1 | 0.078” CS x 2.834” ID “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0150-0183-0200 | 1 | Impeller (Kynar) |
| 7 | 0150-0181-0100 | 1 | Rear Housing with 1/2″ MPT Outlet & Ceramic Thrust Washer (Kynar) |
| 8 | 0150-0176-0300 | 1 | Drive Magnet |
| 9 | 0150-0050-1000 | 4 | #10-32 x 3/4″ Long Screw (Stainless) |
| 10 | 0150-0051-1000 | 4 | #10 Washer (Stainless) |
| 11 | 0150-0070-0100 | 1 | Motor Bracket (Plastic) |
| 12 | 0150-0213-1000 | 1 | Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0750-0987-1000 | 1 | 0.078″ CS x 2.834″ ID “O” Ring (Buna N) |
| 3 | 0150-0212-1000 | 1 | 0.078″ CS x 2.893″ ID “O” Ring (Teflon Encapsulated Viton) |
| 3 | 0750-0053-1000 | 1 | 0.078″ CS x 2.834″ ID “O” Ring (EPDM) |
| 5 | 0130-0147-1000 | 1 | Shaft, 3 Flats (Ceramic) |
| 5 | 0939-0003-1000 | 1 | Shaft (316 Stainless) |
| 6 | 0150-0183-0300 | 1 | Impeller with Mica Teflon Bushing (Kynar) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-5NK-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, small scrubbers, detergent mixers, computer cooling, circuit board and microchip manufacturing.
Great for Chemicals Including
The TE-5NK-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-5NK-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5NK-MD. Chemical Resistance Chart (opens in new tab)

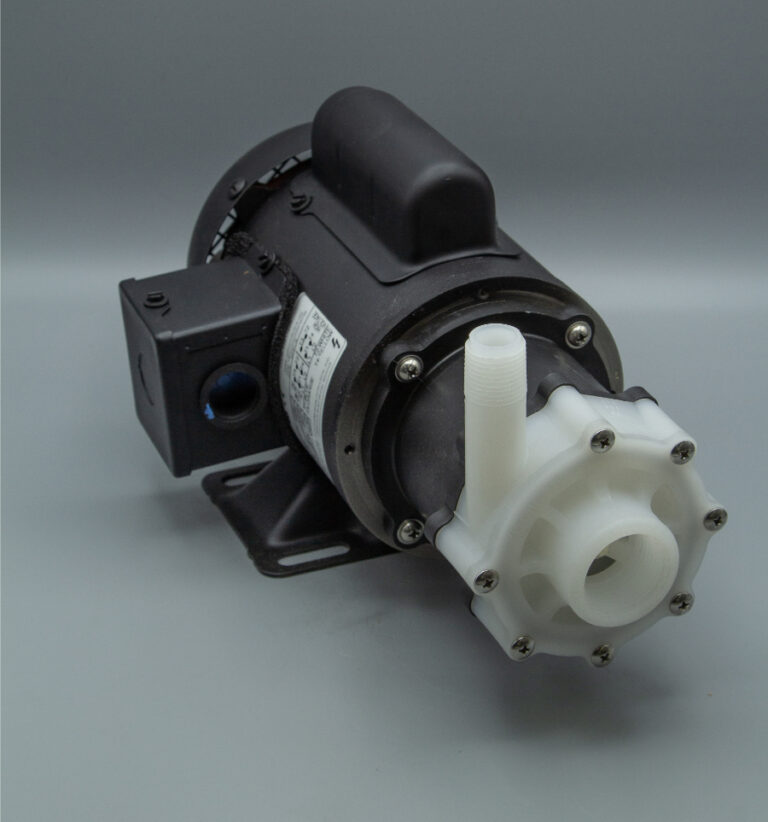

March Pump’s industrial TE-5NK-MD is an American seal-less centrifugal magnetic drive pump ideal for ultra pure applications including chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Natural Kynar (PVDF), Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-5NK-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5NK-MD is suitable for your application, please contact March Pump.
