| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 14.5 GPM | 54.9 LPM |
| Max Head | 27 FT | 8.2 M |
| Power | 0.125 HP | 0.093 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 14.5 GPM | 54.8 LPM |
| Max Head | 19.6 FT | 6 M |
| Power | 0.125 HP | 0.093 KW |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1″FPT
Outlet: 1/2″MPT
Submersible: Yes
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring, Cooling Tube Seal), 316 Stainless Steel (Cooling Tube), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
- Uses: Submersible or Open Air
- When submerged, the following is also in contact with the solution: Epoxy, Noryl, Cord
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Note: Product image may be different than actual product received.
- Consider using a carbon bushing for enhanced run dry protection: Carbon Bushing Information (opens in new tab)
Pump Curves & General Installation Sheets
- March 5C-MD and LC-5C-MD Pump Curve (opens in new tab)
- March 5C-MD and LC-5C-MD Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
- March Marine Pump Maintenance And Trouble Shooting Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0150-0004-0500 | LC-5C-MD 115V | Standard |
| 0150-0004-0600 | LC-5C-MD 230V | Standard |
| The below are modified LC-5C-MD’s | ||
| 0150-0004-0530 | LC-5C-MD 115V | Carbon Bushing |
| 0150-0004-0630 | LC-5C-MD 230V | Carbon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0150-0004-0500 | 1 | LC-5C-MD, 1 Phase, 115V, Complete Standard Pump | |
| 0150-0004-0600 | 1 | LC-5C-MD, 1 Phase, 230V, Complete Standard Pump | |
| 1 | 0150-0021-1000 | 7 | #8-32 x 1-3/4” Lg. Screw (Stainless) |
| 2 | 0150-0032-1000 | 1 | Cover with 1” FPT Inlet (Polypropylene) |
| 3 | 0750-0987-1000 | 1 | 0.078” CS x 2.834” ID “O” Ring (Buna N) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0150-0030-0100 | 1 | Impeller with Bare Ceramic Magnet (Polypropylene) |
| 7 | 0802-0008-1000 | 2 | #10-32 Nut (Stainless) |
| 8 | 0802-0006-1000 | 2 | #10 Lock Washer |
| 9 | 0150-0153-0200 | 1 | Rear Housing with 1/2″ MPT Outlet, Ceramic Thrust Washer, & Plug Assembly (Polypropylene) |
| 10 | 0150-0155-1000 | 1 | Mounting Base (Noryl) |
| 11 | 0150-0020-1000 | 1 | Quad “O” Ring for Bracket |
| 12 | 0125-0007-1000 | 2 | Cooling Tube Seal (Buna N) |
| 13 | Not Available | N/A | L.C. Epoxy Motor Assembly |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 5 | 0939-0003-1000 | 1 | Shaft (316SS) |
| 6 | 0150-0098-0200 | 1 | Encapsulated Impeller (Polypropylene) |
| 6 | 0150-0030-0700 | 1 | Impeller with Bare Ceramic Magnet and Carbon Bushing (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
- Dimensional Drawing LC-5C-MD 115V (opens in new tab)
- Dimensional Drawing LC-5C-MD 230V (opens in new tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
115V Motor
6 Foot Cord and Plug, Submersible
60Hz: 1Ph 0.125HP/0.093kW, 1.6AMPS, 3450 RPM
50Hz: 1Ph 0.125HP/0.093kW, 1.2AMPS, 2850 RPM
230V Motor
6 Foot Cord, Submersible
60Hz: 1Ph 0.125HP/0.0093kW, 0.9AMPS, 3450 RPM
50Hz: 1Ph 0.125HP/0.0093kW, 0.5AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
The most common application for the LC-5C-MD Magnetic Drive Pump is for marine air conditioning and fountains.
Great for Chemicals Including
The LC-5C-MD has pumped Fresh Water and Salt Water. The LC-5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the LC-5C-MD. Chemical Resistance Chart (opens in new tab)

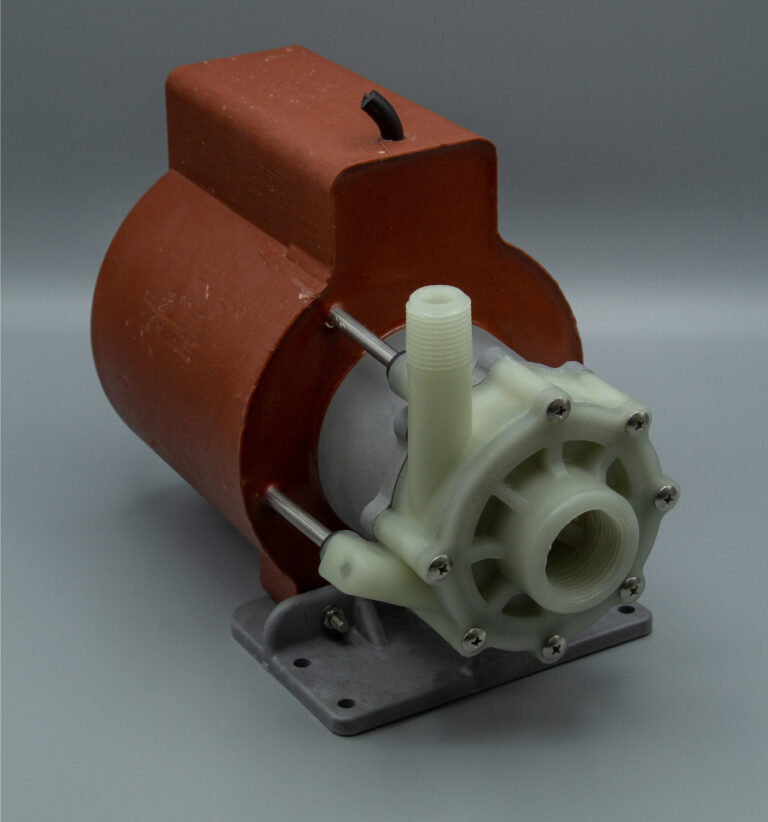

March Pump’s industrial LC-5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The LC-5C-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-5C-MD is suitable for your application, please contact March Pump.
