| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 5 GPM | 18.9 LPM |
| Max Head | 13 FT | 4 M |
| Power | 0.02 HP | 0.015 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 4.9 GPM | 18.5 LPM |
| Max Head | 8.9 FT | 2.7 M |
| Power | 0.018 HP | 0.014 KW |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8″FPT & 3/4″MPT
Outlet: 1/4″MPT
Submersible: Yes
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Stainless Steel (Shaft), Ceramic (Thrust Washer), Ceramic Magnet
- Uses: Submersible Only
- When submerged, the following is also in contact with the solution: Epoxy, Buna N, Cord
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Internal Temperature: 130 °F / 54 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March LC-2CP-MD and 2CP-MD Curve (opens in new tab)
- March 2CP-MD and LC-2CP-MD Pump Manual (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0125-0058-0100 | 2CP-MD 115V | Standard |
| 0125-0058-0200 | 2CP-MD 230V | Standard |
| The below are modified 2CP-MD’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0125-0058-0100 | 1 | 2CP-MD, 1 Phase, 115V, Complete Standard Pump | |
| 0125-0058-0200 | 1 | 2CP-MD, 1 Phase, 230V, Complete Standard Pump | |
| 1 | 0115-0062-1000 | 6 | #7-19 x 1-7/16″ Long Self-Tapping Screw (Stainless) |
| 2 | 0125-0056-1000 | 1 | Cover with 3/8″ FPT x 3/4″ MPT Inlet (Polypropylene) |
| 3 | 0125-0065-1000 | 1 | 3/32″ CS x 2-3/16″ OD “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0125-0125-1000 | 1 | Shaft (Stainless) |
| 6 | 0125-0055-0100 | 1 | Impeller with Bare Ceramic Magnet (Polypropylene) |
| 7 | 0125-0058-1000 | 1 | Rear Housing with 1/4″ MPT Outlet (Polypropylene) |
| 8 | 0125-0134-1000 | 1 | 2MM CS x 57MM ID Bracket “O” Ring (Buna N) |
| 9 | 0125-0130-1000 | 4 | #8-18 x 1/2″ Long Self-Tapping Screw (Stainless) |
| 10 | 0125-0060-1000 | 1 | Mounting Base (Polypropylene) |
| 11 | 0125-0110-1000 | 1 | Motor Bracket Plug (Polypropylene) |
| 12 | 0210-0008-1000 | 1 | 1/16″ CS x 7/16″ OD “O” Ring (Viton) |
| 13 | Not Available | N/A | Epoxy Motor Assembly |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0125-0066-1000 | 1 | 3/32″ CS x 2-3/16″ OD “O” Ring (Buan N) |
| 5 | 0125-0061-1000 | 1 | Shaft (Ceramic) |
| 6 | 0125-0087-0200 | 1 | Encapsulated Impeller (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
- Dimensional Drawing 2CP-MD 115V (opens in new tab)
- Dimensional Drawing 2CP-MD 230V (opens in new tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
115V Motor
6 Foot Cord and Plug, Submersible
60Hz: 1Ph 0.2HP/0.015kW, 0.92 AMPS, 3450 RPM
50Hz: 1Ph 0.18HP/0.014kW, 1.1 AMPS, 2850 RPM
230V Motor
6 Foot Cord, Submersible
60Hz: 1Ph 0.025HP/0.019kW, 0.53 AMPS, 3450 RPM
50Hz: 1Ph 0.18HP/0.014kW, 0.72 AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
The most common application for the 2CP-MD Magnetic Drive Pump is for marine air conditioning and fountains.
Great for Chemicals Including
The 2CP-MD has pumped Fresh Water and Salt Water. The 2CP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 2CP-MD. Chemical Resistance Chart (opens in new tab)

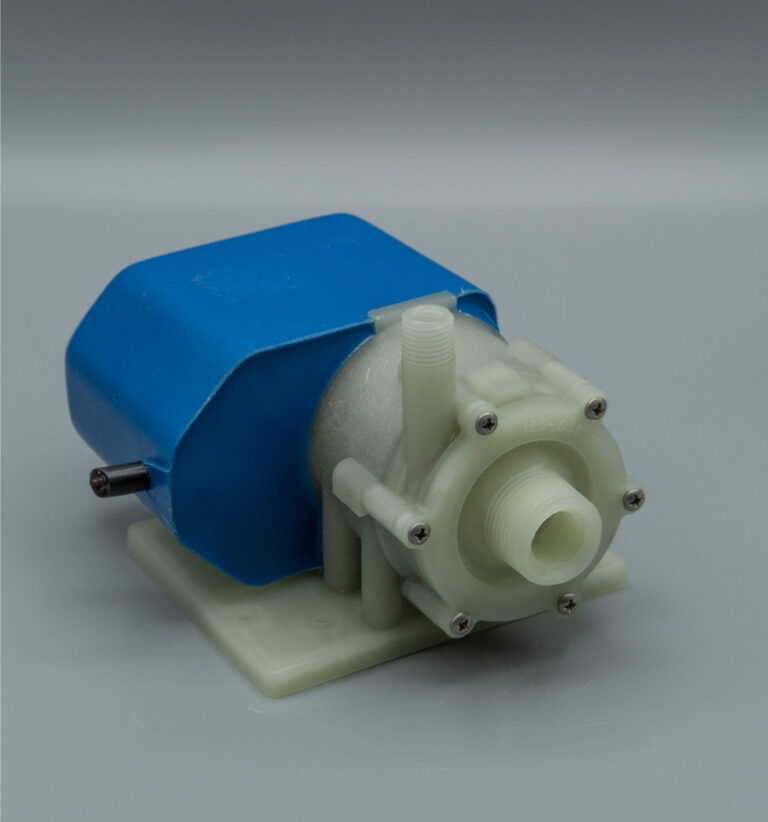

March Pump’s industrial 2CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 5 gallons per minute at 1 foot, and its maximum head is 13 Feet (5.5PSI). The 2CP-MD pump must be used submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Stainless Steel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Buna N, and the Cord are also in contact with the solution. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.02 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March 2CP-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March 2CP-MD is suitable for your application, please contact March Pump.
