| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 39 GPM | 147 LPM |
| Max Head | 34 FT | 10.3 M |
| Power | 0.75 HP | 0.559 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 39 GPM | 147 LPM |
| Max Head | 34 FT | 10.3 M |
| Power | 0.75 HP | 0.559 KW |
Electrical/Air: 90V DC
Inlet: 1-1/2″FPT
Outlet: 1″MPT
- Wet End: Polypropylene (Impeller,Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ryton/Teflon/Carbon (Bushing)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F /87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0155-0308-0200 | TE-7P-MD-DC 90V | Standard |
| The below are modified TE-7P-MD-DC 90V’s |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Options:
- This pump can also be made with Kynar and 316SS.
- O-Ring: Viton, Teflon Encapsulated Viton, or Ethylene Propylene
- Front Thrust Washer: Ceramic or Hastelloy
- Shaft: Ceramic, Hastelloy, or 316 Stainless Steel
- Imp. Bushing: Carbon, Ceramic, Mica Teflon, or Ryton/Teflon/Carbon
- Motor Bracket: Aluminium or Plastic
- Stainless Steel Tag
Perfect for Applications Including
Applications for the TE-7P-MD-DC Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.
Great for Chemicals Including
The TE-7P-MD-DC has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7P-MD-DC may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7P-MD-DC. Chemical Resistance Chart (opens in new tab)

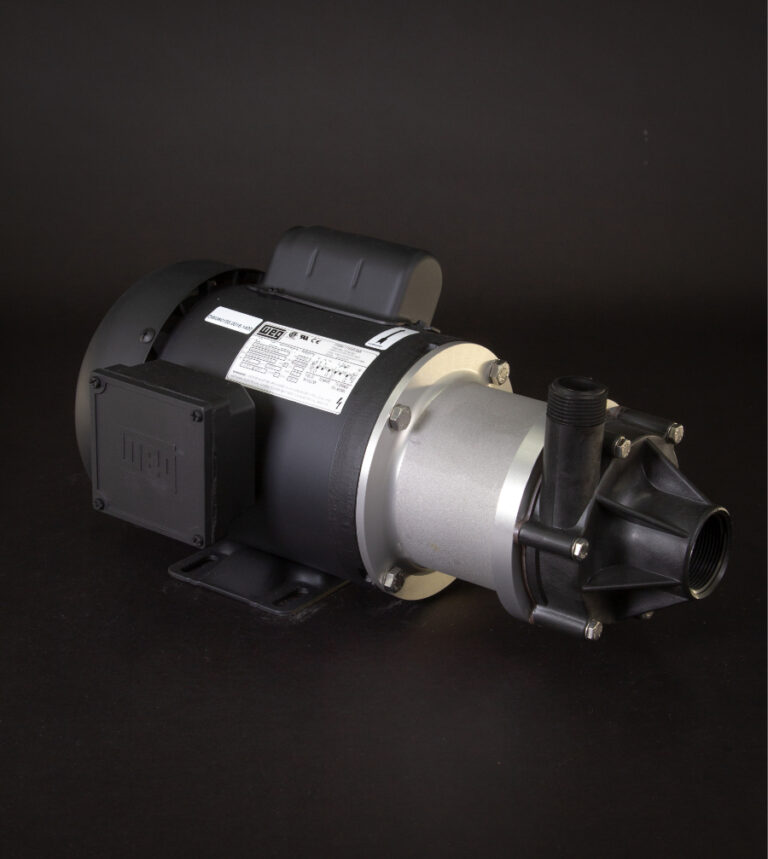

March Pump’s industrial TE-7P-MD-DC is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 39 gallons per minute at 10 feet, and its maximum head is 34 Feet (14PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. The standard motor is a 90V DC Brushtype motor. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7P-MD-DC centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7P-MD-DC is suitable for your application, please contact March Pump.
