| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 120 GPM | 454 LPM |
| Max Head | 90 FT | 27.4 M |
| Power | 5 HP | 3.7 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 105 GPM | 400 LPM |
| Max Head | 63 FT | 19.3 M |
| Power | 5 HP | 3.7 KW |
Electrical/Air: 3Ph 208/230/460V 60Hz & 190/380V 50Hz
Inlet: 2″ Sanitary Flange
Outlet: 1.5″ Sanitary Flanges
- Wet End: 316 Stainless Steel (Front and Rear Housing), Glass Filled Kynar (Impeller) Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
- Motor Options: 3450RPM 3Ph SS IP66 Washdown or 1750RPM 3Ph SS IP66 Washdown
- Max Internal Pressure: 200 PSI / 13.78 bar
- Max Liquid Temperature: 225 °F / 107 °C
- Materials are FDA Food Compliant: Components are UL Recognized. Motors have UL File Numbers
Pump Curves & General Installation Sheets
- March Pump TE-8SSB-MD Pump Curve 60Hz (opens in new tab)
- March Pump General Installation Guide (opens in new tab)
- March Safety Instructions and Preventive Maintenance Guide (opens in new tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0157-0142-0100 | TE-8SSB-MD 3 Phase 5HP 3450RPM with Metal Motor Bracket | Standard |
| 0157-0143-0100 | TE-8SSB-MD 3 Phase 3HP 1750RPM with Metal Motor Bracket | Standard |
| The below are modified TE-8SSB-MD’s |
Dimensional Drawings
- Dimensional Drawing TE-8SSB-MD 3450RPM (opens in new tab)
- Dimensional Drawing TE-8SSB-MD 1750RPM (opens in new tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
3450 RPM Motor
Conduit Box, TEFC Stainless Steel Washdown IP66, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 208-230/460V, 12.6-12.2/6.1 AMPS, 3450 RPM
50Hz: 3Ph 5 HP / 3.7 kW, 190/380V, 14.4/7.2 AMPS, 2850 RPM
1750 RPM Motor
Conduit Box, TEFC Stainless Steel Washdown IP66, VFD Capable
60Hz: 3Ph 3 HP / 2.2 kW, 208-230/460V, 8.4-8/4 AMPS, 1750 RPM
50Hz: 3Ph 3 HP / 2.2 kW, 190/380V, 9.6/4.8 AMPS, 1460 RPM
*Note: A 3 HP motor is used due to the motor frame requirement. When being used, the motor will draw approximately 0.5 HP.
Please contact us for alternative motor data
Great for Chemicals Including
The TE-8SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The TE-8SSB-MD Beer Pump may have to modified to handle other chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8SSB-MD Beer Pump.

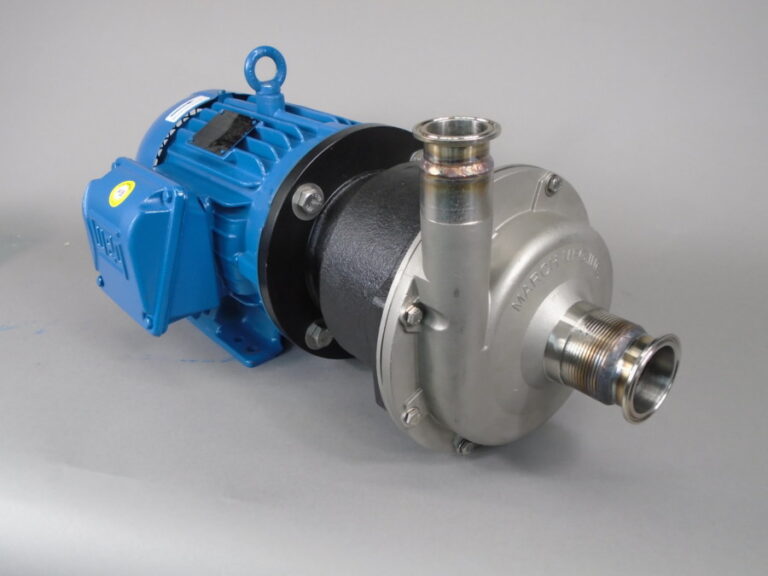

March Pump’s industrial TE-8SSB-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI), with the 3450RPM motor. The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch sanitary fitting, and the outlet is 1-1/2 inch sanitary fitting. There are two standard motors. The first is a 3Ph 208/230/460V 60Hz and 190/380V 50Hz 5HP 3450RPM IP66 SS Washdown motor. The second is a 3Ph 208/230/460V 60Hz and 190/380V 50Hz 3HP 1750RPM IP66 SS Washdown motor, which will only draw approximately 0.5HP. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 225 Fahrenheit or 107 Celsius. The March TE-8SSB-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8SSB-MD is suitable for your application, please contact March Pump.
