| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 8 GPM | 30.3 LPM |
| Max Head | 16 FT | 4.8 M |
| Power | 0.04 HP | 0.03 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 7.9 GPM | 30 LPM |
| Max Head | 11.5 FT | 3.5 M |
| Power | 0.04 HP | 0.03 KW |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2″MPT
Outlet: 1/2″MPT
- Wet End: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
- Max Internal Pressure: 75 PSI / 5.2 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March MDX-MT3 and MDK-MT3 Curve (öffnet in neuem Tab)
- March MDX/K-MT3 and TE-MDX/K-MT3 Pump Manual (öffnet in neuem Tab)
- March Pump General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0135-0036-0100 | MDX-MT3 115V | Standard |
| 0135-0037-0100 | MDX-MT3 230V | Standard |
| The below are modified MDX-MT3’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0135-0036-0100 | 1 | MDX-MT3, 1 Phase, 115V, Complete Standard Pump | |
| 0135-0037-0100 | 1 | MDX-MT3, 1 Phase, 230V, Complete Standard Pump | |
| 1 | 0135-0181-1000 | 6 | #10-32 x 1-1/8″ Long Screw (Stainless) |
| 2 | 0150-0051-1000 | 6 | #10 Washer |
| 3 | 0135-0088-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Ryton) |
| 4 | 0135-0046-1000 | 1 | 1/16″ CS x 2-7/8″ OD “O” Ring (Viton) |
| 5 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 6 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 7 | 0135-0113-0200 | 1 | Impeller (Ryton) |
| 8 | 0135-0087-1000 | 1 | Rear Housing (Ryton) |
| 9 | 0130-0043-0100 | 1 | 0.250″ Bore Drive Magnet |
| 10 | 0135-0135-0100 | 1 | Motor Bracket (Plastic) |
| 11 | 0135-0169-1000 | 4 | #8-32 x 1/2″ Long Hex Washer Head Screw (Stainless) |
| 12 | 0135-0114-1000 | 1 | Motor, 1 Phase, 115V, 50/60 Hz |
| 12 | 0135-0136-1000 | 1 | Motor, 1 Phase, 230V, 50/60 Hz |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0135-0128-1000 | 1 | Front Housing with 1/2″ MPT Inlet & Outlet (Polypropylene) |
| 4 | 0135-0122-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (Teflon) |
| 4 | 0750-0150-1000 | 1 | 1/16” CS x 2-7/8” OD “O” Ring (EPDM) |
| 7 | 0135-0129-0200 | 1 | Impeller (Polypropylene) |
| 8 | 0135-0127-1000 | 1 | Rear Housing (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
- Dimensional Drawing MDX-MT3 115V (öffnet in neuem Tab)
- Dimensional Drawing MDX-MT3 230V (öffnet in neuem Tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0135-0114-1000
3 Foot Cord
60Hz: 1Ph 115V 0.04HP/0.03kW, 1.35 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP/0.03kW, 1.35 AMPS, 2850 RPM
0135-0136-1000
3 Foot Cord
60Hz: 1Ph 230V 0.04HP/0.03kW, 0.85 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.04HP/0.03kW, 0.8 AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the MDX-MT3 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.
Great for Chemicals Including
The MDX-MT3 has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, DI Water, and many more chemicals. The MDX-MT3 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDX-MT3. Chemical Resistance Chart (öffnet in neuem Tab)

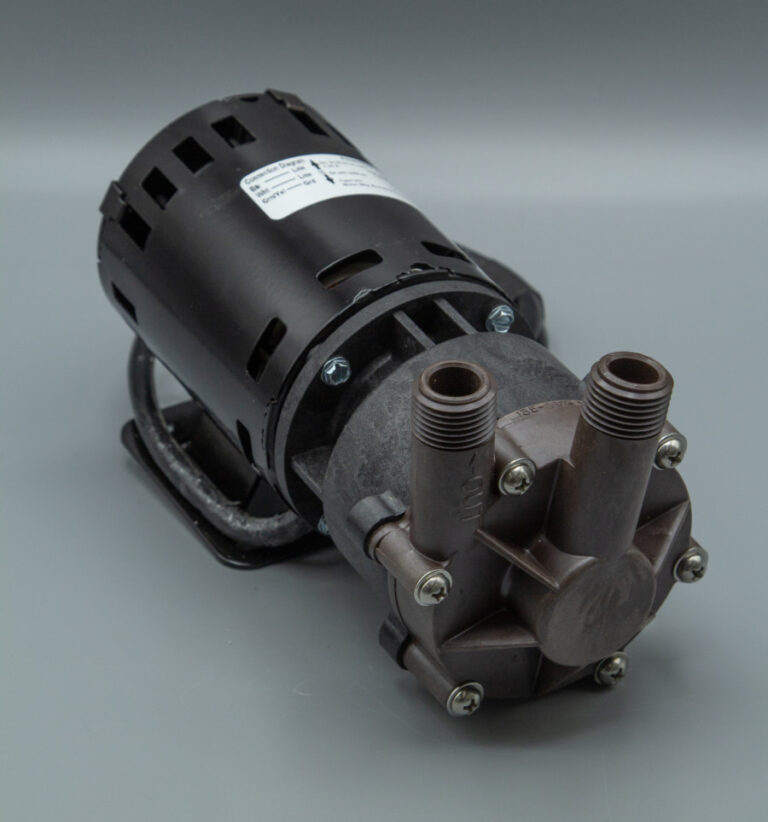

March Pump’s industrial MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 1 foot, and its maximum head is 16 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March MDX-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDX-MT3 is suitable for your application, please contact March Pump.
