| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 27 GPM | 102.2 LPM |
| Max Head | 25.3 FT | 7.7 M |
| Power | 0.2 HP | 0.149 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 25 GPM | 94.6 LPM |
| Max Head | 17.8 FT | 5.4 M |
| Power | 0.2 HP | 0.149 KW |
Electrical/Air: 115/230V 50/60Hz
Inlet: 3/4″FPT
Outlet: 3/4″FPT
- Wet End: 304 Stainless Steel (Front Housing, Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
- Max Internal Pressure: 150 PSI / 10.3 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March 830-T Curve (öffnet in neuem Tab)
- March 830-SS-T Pump Manual (öffnet in neuem Tab)
- March Pump General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0175-0093-0100 | 830-SS-T | Standard |
| The below are modified 830-SS-T’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0175-0093-0100 | 1 | 830-SS-T, 1 Phase, Complete Standard Pump | |
| 1 | 0821-0112-0010 | 1 | Pump Housing with 3/4″ Threaded Inlet & Outlet (Stainless) |
| 2 | 0821-0079-1000 | 1 | Thrust Washer (Ceramic) |
| 3 | 0821-0036-1000 | 1 | Shaft (Stainless) |
| 4 | 0175-0073-0200 | 1 | Impeller with Bushing (Ryton/Teflon/Carbon) |
| 5 | 1043-0002-1000 | 1 | 2.843″ ID x 0.047″ Thick Gasket (Nitrile/Fibre) |
| 6 | 0821-0035-0100 | 1 | Rear Housing (Stainless) |
| 7 | 0821-0044-0001 | 1 | Housing Connecting Ring (Aluminum) |
| 8 | 1043-0009-1000 | 4 | 1/4″-20 x 3/4″ Long Flat Head Connecting Screw (Steel) |
| 9 | 0175-0027-1000 | 1 | Motor Bracket (Plastic) |
| 10 | 0155-0021-1000 | 4 | 1/2″ OD Washer (Stainless) |
| 11 | 0804-0052-1000 | 4 | 1/4″-20 x 3/4″ Long Socket Head Housing Screw (Steel) |
| 12 | 0151-0061-0200 | 1 | Drive Magnet |
| 13 | 0410-0039-1000 | 4 | #8-32 Hex Nut (Nickel Plated Brass) |
| 14 | 0620-0010-1000 | 4 | #8 Lock Washer (Stainless) |
| 15 | 0175-0087-1000 | 1 | Motor, 1 Phase, 115/230V, 50/60 Hz |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0175-0087-1000 Motor
Conduit Box, IP22
60Hz: 1Ph 0.2HP / 0.15kW, 115/230V, 2.7/1.46 AMPS, 3450 RPM
50Hz: 1Ph 0.2HP / 0.15kW, 115/230V, 2.9/1.48 AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the 830-SS-T Magnetic Drive Pump include hot water and hot oil systems.
Great for Chemicals Including
The 830-SS-T has pumped Cutting Oils, Ethylene Glycol, Hot Water and Salt Water. The 830-SS-T may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 830-SS-T. Chemical Resistance Chart (öffnet in neuem Tab)

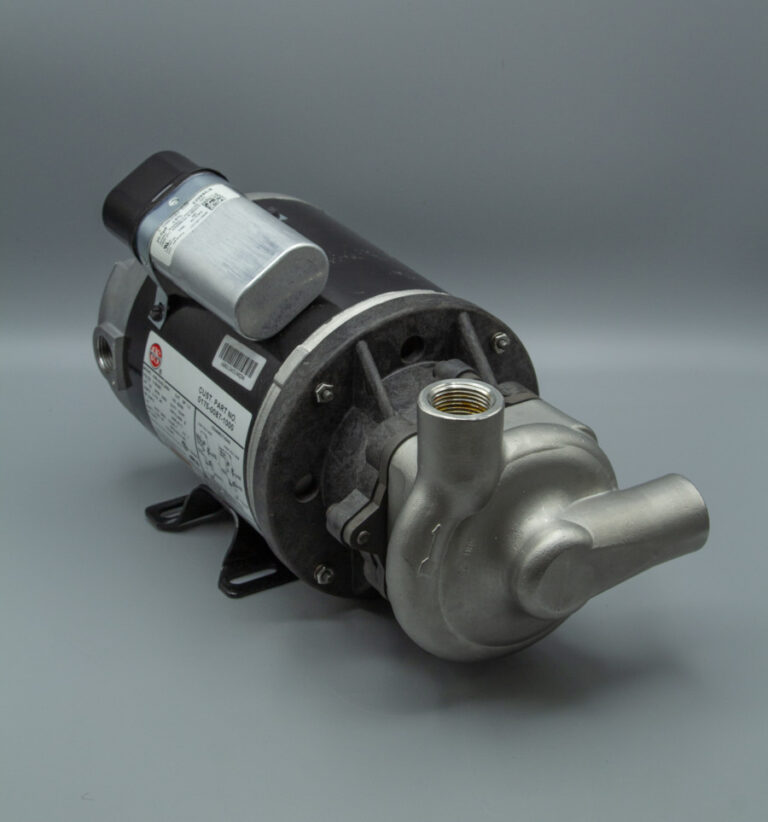

March Pump’s industrial 830-SS-T is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 27 gallons per minute at 10 feet, and its maximum head is 25.3 Feet (10.95PSI). The standard wet end (the materials that come into contact with the solution) is composed of 304 Stainless Steel, Ceramic, Ryton/Teflon/Carbon, and Nitrile/Fibre. The inlet connection is 0.75 inch female pipe thread, and the outlet is 0.75 female pipe thread. The standard motor is a 1 Phase 115/230V 0.2 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 830-SS-T is suitable for your application, please contact March Pump.
