| System | US | Metric |
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 15.5 FT | 4.7 M |
| Power | 0.04 HP | 0.029 KW |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 1/2″MPT
Outlet: 1/2″MPT
- Wet End: Polysulfone (Front Housing), Stainless Steel (Rear Housing. Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March 809-PL-HS 12V & 24V Curve (öffnet in neuem Tab)
- March 809-HS 12V & 24V Pump Manual (öffnet in neuem Tab)
- March Pump General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0809-0157-0100 | 809-PL-HS 12V | Standard |
| 0809-0158-0100 | 809-PL-HS 24V | Standard |
| The below are modified 809-PL-HS-DC’s |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0809-0157-0100 | 1 | 809-PL-HS 12V DC Complete Standard Pump | |
| 0809-0158-0100 | 1 | 809-PL-HS 24V DC Complete Standard Pump | |
| 1 | 0923-0003-1000 | 4 | #8-32 x 1″ Long Housing Screw (Steel) |
| 2 | 0809-0079-0100 | 1 | Pump Housing with Inline Inlet & Outlet (Polysulfone) |
| 3 | 0809-0027-1000 | 1 | 1/16″ CS x 2-3/8″ ID “O” Ring (Silicone) |
| 4 | 0809-0043-1000 | 1 | Thrust Washer (Teflon) |
| 5 | 0809-0161-1000 | 1 | “D” Flat Shaft (Stainless) |
| 6 | 0809-0005-0200 | 1 | 1-11/16″ Diameter Impeller (Ryton/Teflon/Glass) |
| 7 | 0809-0012-1000 | 1 | Rear Housing (Stainless) |
| 8 | 0135-0040-1000 | 4 | #8-32 x 3/8″ Long Rear Housing Screw (Stainless) |
| 9 | 0125-0083-0100 | 1 | Drive Magnet with 0.250 Bore |
| 10 | 0150-0015-1000 | 4 | #8-32 x 1/2″ Long Screw (Stainless) |
| 11 | 0858-0004-1000 | 4 | #8 Washer (Stainless) |
| 12 | 0809-0058-1000 | 1 | Motor Bracket (Plastic) |
| 13 | 0809-0101-1000 | 1 | Motor, 12V DC Brush, 3650 RPM |
| 13 | 0809-0103-1000 | 1 | Motor, 24V DC Brush, 3650 RPM |
| 14 | 0809-0173-1000 | 2 | Replaceable Brushes for Motor (Not Shown) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 14 | 0809-0173-1000 | 2 | Replaceable Brushes for Motor (Not Shown) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
- Dimensional Drawing 809-PL-HS 12V (öffnet in neuem Tab)
- Dimensional Drawing 809-PL-HS 24V (öffnet in neuem Tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0809-0101-1000 Motor
9″ Leads
12V, 3.5 AMPS, 3650 RPM, 0.04HP / 0.029kW
Voltage Range 0-14V
0809-0103-1000 Motor
9″ Leads
24V, 1.8 AMPS, 3650 RPM, 0.04HP / 0.029kW
Voltage Range 0-26V
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the 809-PL-HS 12V & 24V Magnetic Drive Pump include hot water systems, solar heating, and fryers.
Great for Chemicals Including
The 809-PL-HS 12V & 24V has pumped Cutting Oils, Ethylene Glycol, Hot Water, Hot Wort and Salt Water. The 809-PL-HS 12V & 24V may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 809-PL-HS 12V & 24V. Chemical Resistance Chart (öffnet in neuem Tab)

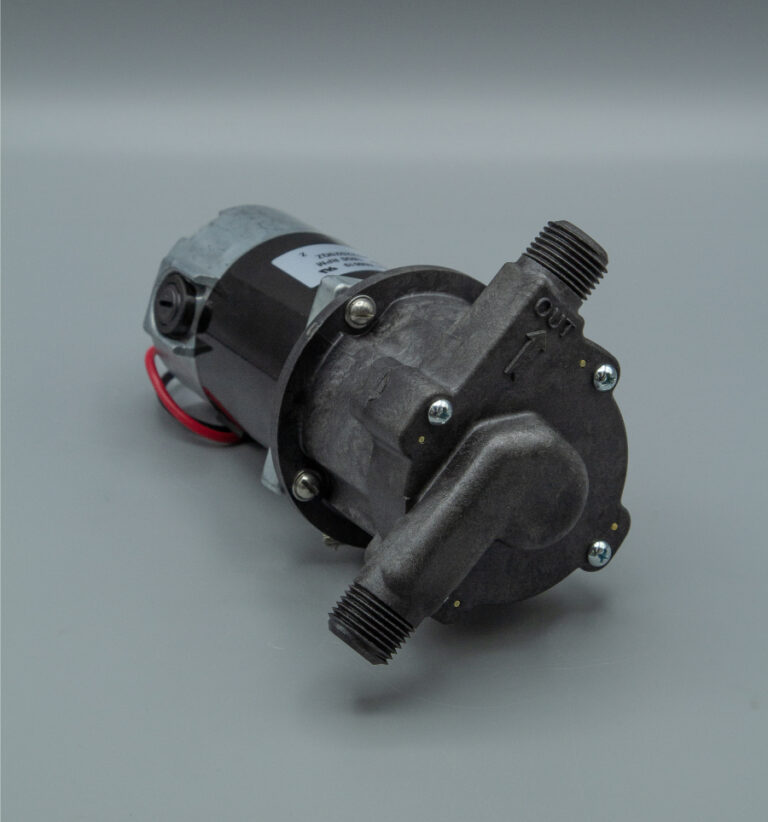

March Pump’s industrial 809-PL-HS 12V & 24V is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 6 gallons per minute at 2.5 feet, and its maximum head is 15.5 Feet (6.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polysulfone, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.5 inch male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 0.04 Horsepower DC Brush Type Motor, available in 12 or 24 Volts. The 12 Volt motor has an operating range from 0 to 14 Volts, and the 24 Volt motor has an operating range from 0 to 26 Volts. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-PL-HS 12V & 24V is suitable for your application, please contact March Pump.
