| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 18 GPM | 68.1 LPM |
| Max Head | 29 FT | 8.85 M |
| Power | 0.2 HP | 0.149 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 15.9 GPM | 60.5 LPM |
| Max Head | 20.7 FT | 6.3 M |
| Power | 0.2 HP | 0.149 KW |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1″FPT
Outlet: 1/2″MPT
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
- Motor Options: Available in Explosion Proof
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
- March Pump TE-5 60Hz Curves (öffnet in neuem Tab)
- March Pump TE-5 50Hz Curves (öffnet in neuem Tab)
- TE-5 Special Impeller for 50Hz Only Curve (öffnet in neuem Tab)
- March TE-5 Plastic Series Manual (öffnet in neuem Tab)
- March Pump General Installation Guide (öffnet in neuem Tab)
- March Safety Instructions and Preventive Maintenance Guide (öffnet in neuem Tab)
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0150-0214-0100 | TE-5C-MD 1 Phase with Weg Motor | Standard |
| 0150-0220-0100 | TE-5C-MD-IEC 3 Phase | Standard |
| 0150-0026-0400 | TE-5C-MD 1Phase with Explosion Proof Motor | Standard |
| The below are modified TE-5C-MD’s | ||
| 0150-0214-0112 | TE-5C-MD 1 Phase with Weg Motor | Teflon O-RIng |
| 0150-0220-0112 | TE-5C-MD-IEC 3 Phase | Teflon O-RIng |
| 0150-0026-0412 | TE-5C-MD 1 Phase with Explosion Proof Motor | Teflon O-RIng |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0150-0214-0100 | 1 | TE-5C-MD, 1 Phase, Complete Standard Pump (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12) | |
| 0150-0026-0400 | 1 | TE-5C-MD, 1 Phase, Explosion Proof Complete Pump | |
| 0150-0220-0100 | 1 | TE-5C-MD, 3 Phase, IEC Motor, Complete Standard Pump (Items: A, 2, 3, 4, 5, 6, 7, B, C, 10, D, E) | |
| 1 | 0150-0021-1000 | 7 | #8-32 x 1-3/4” Long Screw (Stainless) |
| 2 | 0150-0032-1000 | 1 | Cover with 1” FPT Inlet (Polypropylene) |
| 3 | 0750-0986-1000 | 1 | 0.078” CS x 2.834” ID “O” Ring (Viton) |
| 4 | 0130-0028-1000 | 1 | Thrust Washer (Ceramic) |
| 5 | 0130-0024-1000 | 1 | Shaft (Ceramic) |
| 6 | 0150-0098-0200 | 1 | Encapsulated Impeller (Polypropylene) |
| 7 | 0150-0031-0100 | 1 | Rear Housing with 1/2″ MPT Outlet & Ceramic Thrust Washer (Polypropylene) |
| 8 | 0150-0176-0300 | 1 | Drive Magnet (0.375 Inch Bore) for NEMA Motor |
| 9 | 0150-0050-1000 | 4 | #10-32 x 3/4″ Long Screw (Stainless) |
| 10 | 0150-0051-1000 | 4 | #10 Washer (Stainless) |
| 11 | 0150-0070-0100 | 1 | NEMA Motor Bracket (Plastic) |
| 12 | 0150-0213-1000 | 1 | Motor, TEFC, 1 Phase, 115/230 V, 50/60 Hz |
| 12 | 0150-0089-1000 | 1 | Motor, Explosion Proof, 1 Phase, 115/230 V, 50/60 Hz |
| A | 0150-0221-1000 | 7 | M4 x 1.77″ Long Screw (Stainless) for IEC Motor |
| B | 0150-0178-1000 | 1 | Drive Magnet (9MM) for IEC Motor |
| C | 0150-0222-1000 | 4 | M5 x .62″ Long Screw (Stainless) for IEC Motor |
| D | 0150-0177-1000 | 1 | IEC Motor Bracket (Plastic) |
| E | 0150-0218-1000 | 1 | Motor, TEFC, IEC, 3 Phase, 230/460V 50/60 Hz |
| WEK | 0150-0148-0200 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7) |
| PLM | 0150-0224-0100 | 1 | NEMA Pump Less Motor (Items: 1, 2, 3, 4, 5, 6 ,7, 8, 9, 10, 11) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 3 | 0750-0987-1000 | 1 | 0.078″ CS x 2.834″ ID “O” Ring (Buna N) |
| 3 | 0150-0212-1000 | 1 | 0.078″ CS x 2.893″ ID “O” Ring (Teflon Encapsulated Viton) |
| 3 | 0750-0053-1000 | 1 | 0.078″ CS x 2.834″ ID “O” Ring (EPDM) |
| 5 | 0130-0147-1000 | 1 | Shaft, 3 Flats (Ceramic) |
| 5 | 0939-0003-1000 | 1 | Shaft (316 Stainless) |
| 6 | 0150-0098-0300 | 1 | Impeller with Carbon Bushing (Polypropylene) |
| 6 | 0150-0098-0500 | 1 | Impeller with Mica Teflon Bushing (Polypropylene) |
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) | |
| Flanges (Not Shown) |
Dimensional Drawings
- Dimensional Drawing TE-5C-MD 1 Phase with Weg Motor (öffnet in neuem Tab)
- Dimensional Drawing TE-5C-MD-IEC 3 Phase (öffnet in neuem Tab)
Please Contact us for 3D drawings and drawings of pumps with alternative motors.
Motor Information
0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3 AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2 AMPS, 2850 RPM
0150-0218-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 3450 RPM
50Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 2850 RPM
Please contact us for alternative motor data
Perfect for Applications Including
Applications for the TE-5C-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, small scrubbers, detergent mixers, computer cooling, carbon arc furnace cooling, and marine air conditioners.
Great for Chemicals Including
The TE-5C-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5C-MD. Chemical Resistance Chart (öffnet in neuem Tab)

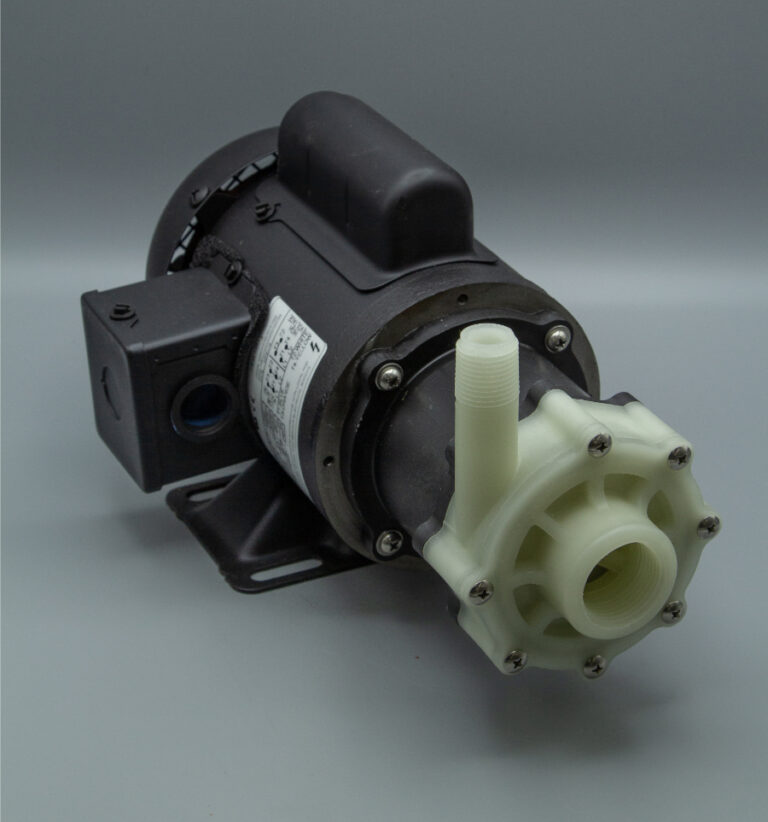

March Pump’s industrial TE-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5C-MD is suitable for your application, please contact March Pump.
